Trochlear sulcus modeling for femoral implant positioning during navigated TKA

Introduction

Patellofemoral complications are a common cause of pain and complications after total knee arthroplasties (TKA). Femoral implant misplacement may generate overstuff, resulting in increased patellar stresses and anterior knee pain [10], Nam D, Nunley RM, Barrack RL (2014) Patient dissatisfaction following total knee replacement: a growing concern? Bone Jt J 96B:96–100[12] Petersen W, Rembitzki IV, Brüggemann GP, Ellermann A, Best R, Koppenburg AG, Liebau C (2014) Anterior knee pain after total knee arthroplasty: a narrative review. Int Orthop 38:319–328. A recent review on mid flexion instability included as technique-specific risk factors the distalization and anteriorization of femoral implant [5], Evangelista PJ, Laster SK, Lenz NM, Sheth NP, Schwarzkopf R (2018) A computer model of mid-flexion instability in a balanced total knee arthroplasty. J Arthroplasty 33:S265–S269[16] Vajapey SP, Pettit RJ, Li M, Chen AF, Spitzer AI, Glassman AH (2020) Risk factors for mid-flexion instability after total knee arthroplasty: a systematic review. J Arthroplasty. https ://doi. org/10.1016/j.arth.2020.05.026. Iranpour [6] Iranpour F, Merican AM, Baena FRY, Cobb JP, Amis AA (2010) Patellofemoral joint kinematics: the circular path of the patella around the trochlear axis. J Orthop Res 28:589–594 clearly demonstrates that, in healthy knees, patella follows a circular path. This path is guided by circular shape and orientation of trochlear axis [7] Iranpour F, Merican AM, Dandachli W, Amis AA, Cobb JP (2010) The geometry of the trochlear groove. Clin Orthop Relat Res 468:782–788.

Given that, a better understanding of the relationship between the femoral component positioning, surgical technique and TKA outcomes, is related to an accurate knowledge of the femoral trochlear geometry itself. However, most of studies focused on the transverse and frontal geometry of the trochlear groove, quantifying its depths and orientation [7] Iranpour F, Merican AM, Dandachli W, Amis AA, Cobb JP (2010) The geometry of the trochlear groove. Clin Orthop Relat Res 468:782–788, while its radius in the sagittal plane has been mostly neglected [4], Du Z, Chen S, Yan M, Yue B, Zeng Y, Wang Y (2017) Do size, shape, and alignment parameters of the femoral condyle affect the trochlear groove tracking? A morphometric study based on 3D- computed tomography models in Chinese people. BMC Musculoskelet Disord 18:1–7[11], O’Connor JJ, Shercliff TL, Biden E, Goodfellow JW (1989) The geometry of the knee in the sagittal plane. Proc Inst Mech Eng Part H J Eng Med 203:223–233[17] Wang J, Yue B, Wang Y, Yan M, Zeng Y (2012) The 3D analysis of the sagittal curvature of the femoral trochlea in the Chinese population. Knee Surg Sports Traumatol Arthrosc 20:957–963. Moreover, the few studies that investigated this aspect were limited to the use of radiological technologies such as MRI or CT-based 3D reconstructions.

During surgery the trochlear groove could be used as reference for femoral implant positioning, because it is less affected by pathology. Despite this, shape of trochlear sulcus on TKA patients has been scarcely investigated. The aim of the study was to verify if pathological trochlear sulcus, collected during intraoperative navigation, is still comparable to what is reported on healthy subjects with other methodologies. Based on literature [4], Du Z, Chen S, Yan M, Yue B, Zeng Y, Wang Y (2017) Do size, shape, and alignment parameters of the femoral condyle affect the trochlear groove tracking? A morphometric study based on 3D- computed tomography models in Chinese people. BMC Musculoskelet Disord 18:1–7[7], Iranpour F, Merican AM, Dandachli W, Amis AA, Cobb JP (2010) The geometry of the trochlear groove. Clin Orthop Relat Res 468:782–788[11], O’Connor JJ, Shercliff TL, Biden E, Goodfellow JW (1989) The geometry of the knee in the sagittal plane. Proc Inst Mech Eng Part H J Eng Med 203:223–233[17] Wang J, Yue B, Wang Y, Yan M, Zeng Y (2012) The 3D analysis of the sagittal curvature of the femoral trochlea in the Chinese population. Knee Surg Sports Traumatol Arthrosc 20:957–963 we wanted to verify if trochlear sulcus, in TKA patients, can still be modeled with a circle and used as intraoperative parameter for implant positioning.

Material and methods

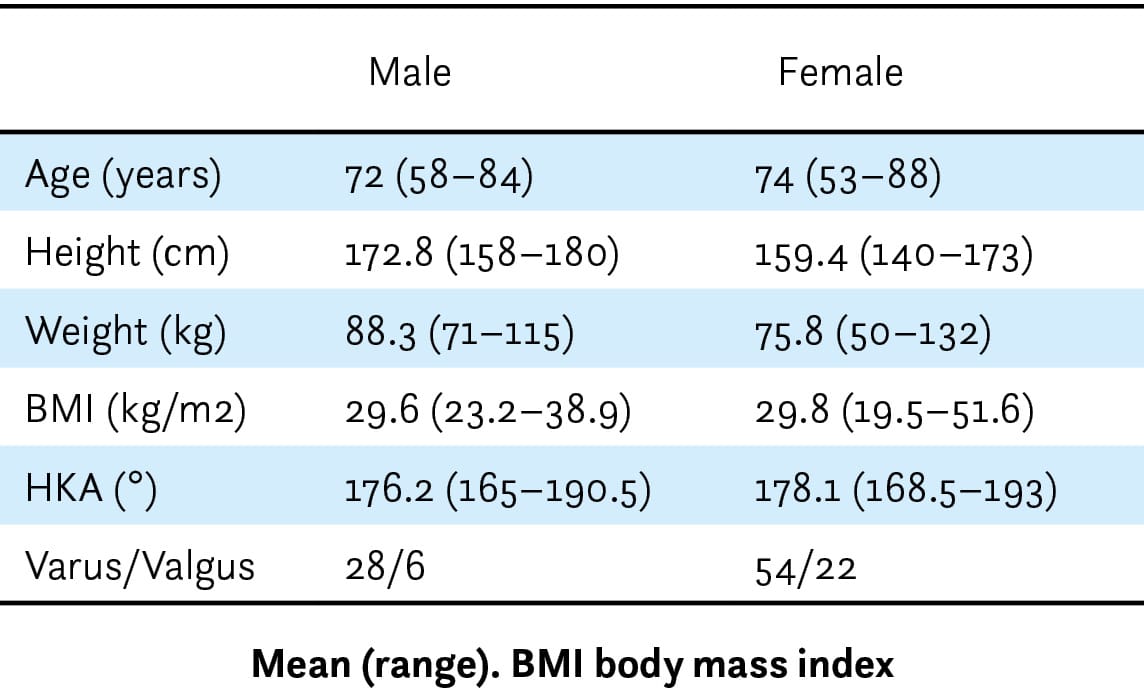

Femoral sulcus was acquired on a cohort of 110 consecutive patients (34 men and 76 women) who underwent navigated TKA between October 2017 and November 2018 by a single experienced surgeon (YV). Patient characteristics such as age, gender, body mass index (BMI) and mechanical axis (HKA) were recorded (Table 1).

Exclusion criteria of the study were: varus or valgus deformities greater than 15°.

Anatomic data were acquired intraoperatively using a navigation system (BLU-IGS, Orthokey Italia Srl, Firenze, Italy), navigation system’s protocol and accuracy are reported [1], Bignozzi S, Lopomo N, Zaffagnini S, Martelli S, Bruni D, Marcacci M (2008) Accuracy, reliability, and repeatability of navigation systems in clinical practice. Oper Tech Orthop 18:154–157[2] Casino D, Zaffagnini S, Martelli S, Lopomo N, Bignozzi S, Iacono F, Russo A, Marcacci M (2009) Intraoperative evaluation of total knee replacement: kinematic assessment with a navigation system. Knee Surg Sports Traumatol Arthrosc 17:369–373, nominal accuracy of the system is 0.5°/ mm and inter-tester reliability > 0.8 (intraclass correlation coefficient ICC).

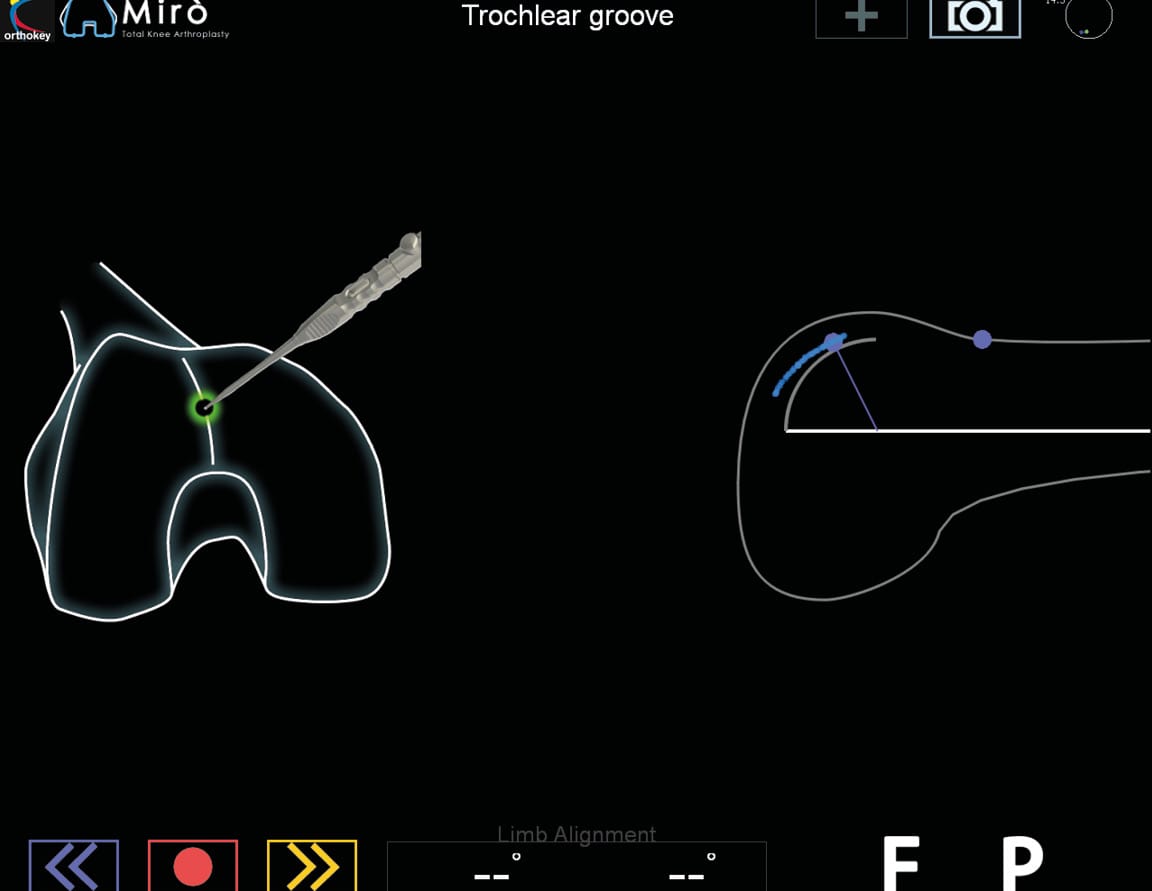

Dedicated protocol was developed for trochlear sulcus evaluation and additional acquired points were visualized, expressed and analyzed in the femur reference system to define the sagittal geometry of the sulcus (femur lateral view) (Figure 1).

Studies demonstrated that in healthy knee, patellofemoral groove closely approximated a circular arc [4], Du Z, Chen S, Yan M, Yue B, Zeng Y, Wang Y (2017) Do size, shape, and alignment parameters of the femoral condyle affect the trochlear groove tracking? A morphometric study based on 3D- computed tomography models in Chinese people. BMC Musculoskelet Disord 18:1–7[7], Iranpour F, Merican AM, Dandachli W, Amis AA, Cobb JP (2010) The geometry of the trochlear groove. Clin Orthop Relat Res 468:782–788[11], O’Connor JJ, Shercliff TL, Biden E, Goodfellow JW (1989) The geometry of the knee in the sagittal plane. Proc Inst Mech Eng Part H J Eng Med 203:223–233[17] Wang J, Yue B, Wang Y, Yan M, Zeng Y (2012) The 3D analysis of the sagittal curvature of the femoral trochlea in the Chinese population. Knee Surg Sports Traumatol Arthrosc 20:957–963. The trochlear groove points were fitted by a circle in a range from 0° to 90°. The best-fit was found using a software routine that minimized the root mean-square error in relation to the acquired points. The trochlear groove varus-valgus and internal–external orientations as well as the starting and end points of the groove were even evaluated.

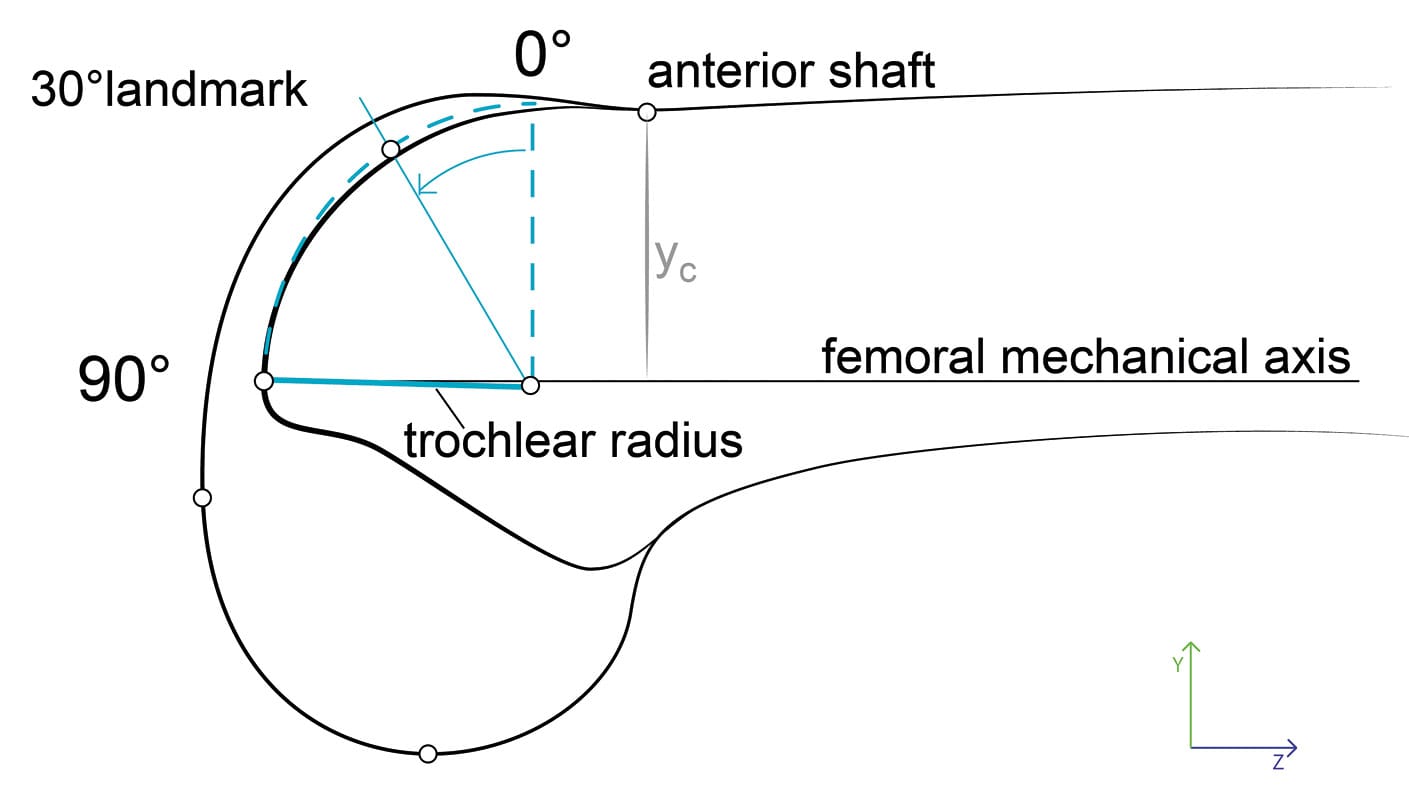

Femoral length was defined as the distance between femoral head center to the distal inter-condylar notch and the APk femur dimension as the distance between the anterior femoral cortex and the posterior condyle. Once modeling was validated, trochlear sulcus information has been used actively for femoral implant planning during surgery. From the comparison of sulcus modeling with used implant (U2, UOC, France) a point at 30° of sulcus arc (Figure 2) has been defined as reference during planning phase.

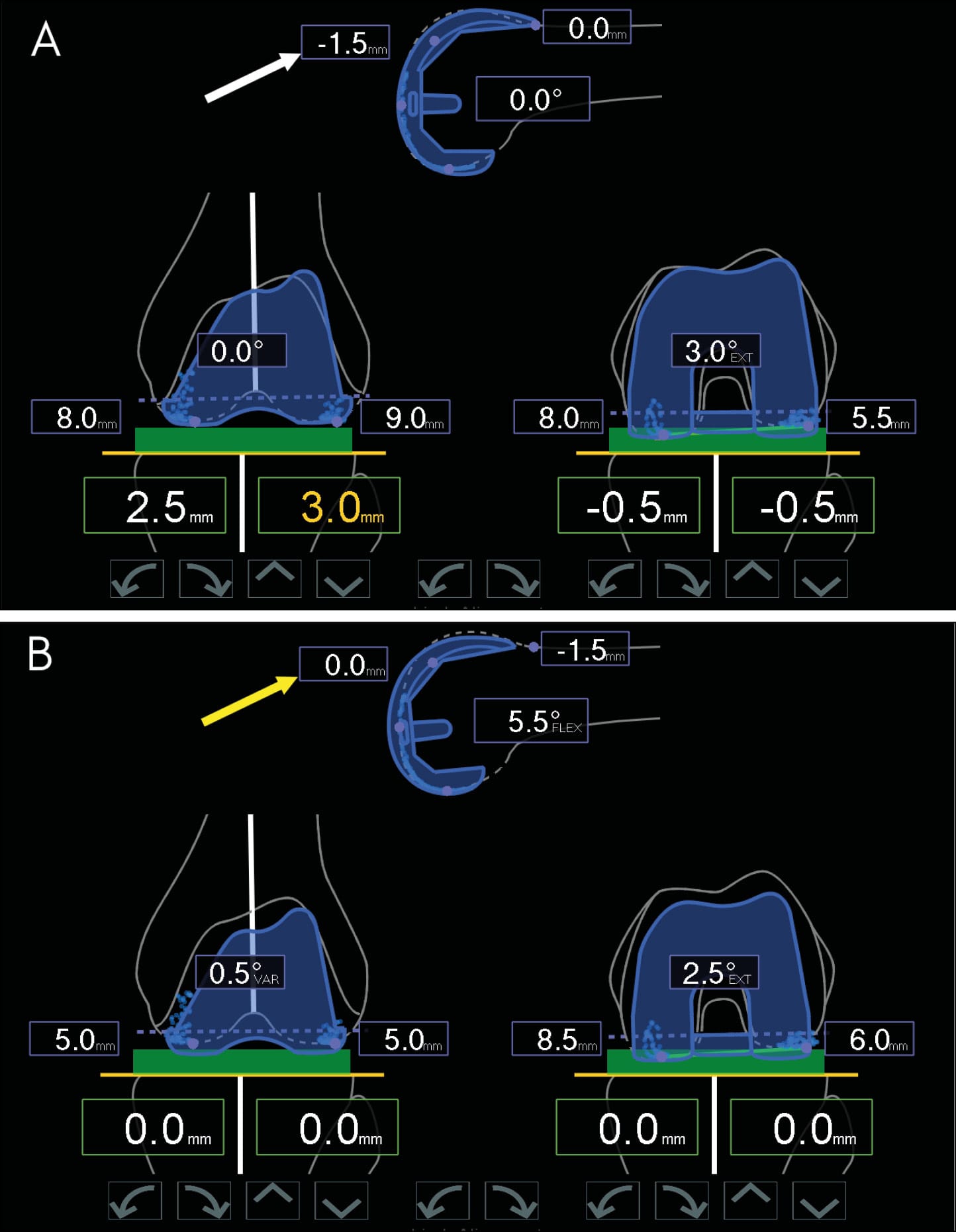

During planning, the use of this reference, in combination with joint spaces, implant size, notching and condylar shapes, was used to optimize implant positioning according to surgeon experience. In figure 3 an example is shown. On left side (Figure 3A) default implant position is proposed by navigation system, based on measured resection technique. Extension gap presents a laxity of 2.5mm medial and 3.0mm lateral. Implant trochlear sulcus is 1.5mm below native (indicated with a white arrow in figure), hence the surgeon decided for a distalization of femoral implant, to optimize ligament balance in extension, confident that he was not overstuffing patellar tracking, (Figure 3B yellow arrow), despite a slight overhang of 1.5mm on femoral anterior notch.

This approach has been applied to 60 cases, operated by a single surgeon (YV). KSS score and patellar pain score were registered at pre-operative, 1 month, 3 months and 12 months to verify the impact of approach on clinical outcomes.

The CNIL *French ethic comitee regarding personal datas* gave the authorization to collect clinical data. Patients signed informed consent for the surgical procedure the study was performed in accordance with the ethical standards as laid down in the 1964 Declaration of Helsinki and its later amendments or comparable ethical standards.

Statistical analysis

Data were reported as mean and standard deviation (mean ± SD). Considering the lack of studies in literature with the same methodology, the sample size was calculated with the aim to detect a significant difference between males and females of 2 mm with a standard deviation of 3 mm. The Students’ t test was performed to compare the patients’ gender with the radius of the trochlear groove and the APk dimension. Correlation between femur length and groove radius was analyzed with Pearson’s linear correlation test. Differences on KSS scores were evaluated with ANOVA, while differences on patellar pain was evaluated with Chi-square test. A p value of less than 0.05 was considered statistically significant. Analyse-it software (Analyse-it Software Ltd., Leeds, UK) was used to perform the reported statistical analysis.

Results

The geometry of the trochlear groove could be described accurately as a circle in the sagittal plane. The average radius was 25.5 ± 5.6 mm (range 14.0–37.4 mm) and the 95% CI was from 24.4 to 26.5 mm. The data points had an average root mean-square error of 0.4 ± 0.2 mm from the fitted radius in each knee.

In the sagittal view, the average center of the fitted trochlear groove was at 24.0 ± 4.6 mm proximally along the mechanical axis and 2.2 ± 5.2 mm posteriorly along the AP axis. A weak correlation was found between the groove radius and the anterior femoral cortex (r = 0.27). No correlation was found between the femur length and the trochlear groove radius (r = − 0.02).

For men, the radius of the curvature of the femoral trochlear groove was 24.7 ± 4.9 mm, while for women it was 25.6 ± 5.8 mm. On axial plane, the trochlear groove was 3.2° ± 4.3° externally rotated, with respect to the posterior condylar axis. On frontal plane, it was 3.9° ± 5.3° externally rotated, with respect to femoral mechanical axis. With no statistical difference between genders for radius and orientation. A positive moderate correlation was found between the APk dimension and the trochlear groove radius (r = 0.36).

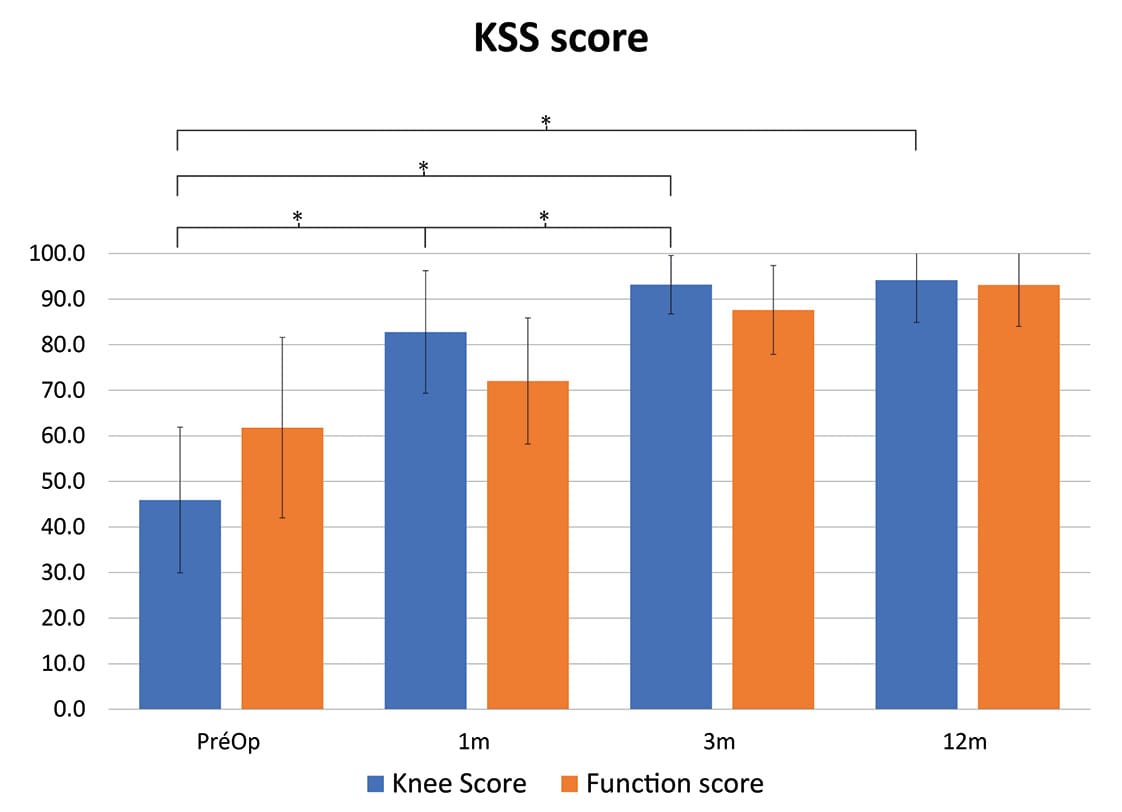

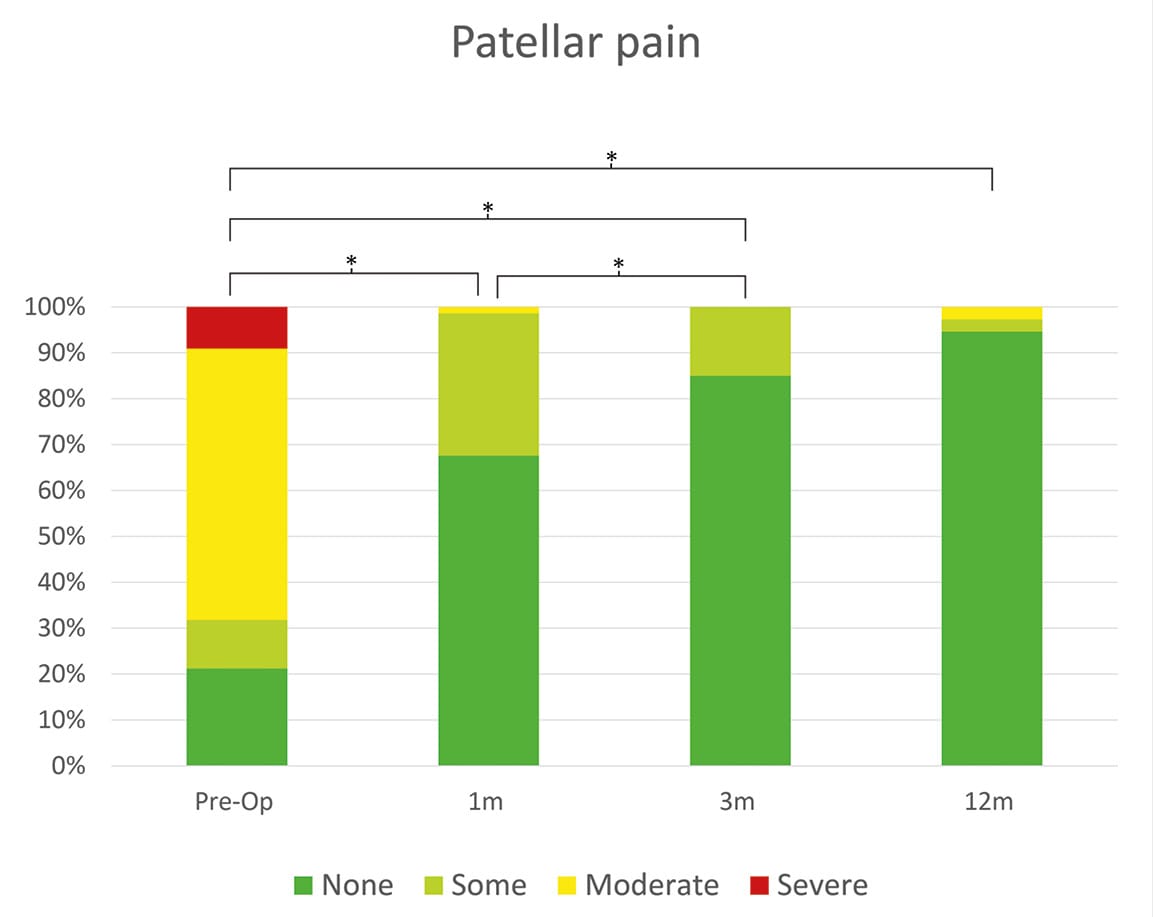

Clinical follow-up showed reduction of patellar pain, with more than 60% of patients reporting no pain since first month. After 3 months patellar pain remained stable (Fig.4). Similarly, KSS knee and functional scores improved at early follow-up. In particular Knee score reached optimal (>80) results at 1m follow up (Figure 5).

Discussion

The most important finding of the present study was that the geometry of the trochlear groove, in patients who underwent a TKA implant, could be described accurately as a circle in the sagittal plane with an average radius of 25.5 ± 5.6 mm centered 2.2 ± 5.2 mm posterior to mechanical axis, and 24.0 ± 4.6 mm proximal to inter-condylar notch. Sulcus line has 3.2° ± 4.3° of external rotation, with respect to the posterior condyles axis and a 3.9° ± 5.3° of external rotation, with respect to the mechanical axis. Moreover, no differences were found between genders or based on femoral length.

Native trochlear groove modeling groove geometry, in combination with conventional landmarks and ligament balancing, can be used intraoperatively to bet position femoral component with the result of reducing patellar pain and obtain satisfactory KSS score at early follow-up. This is the first study that describes sagittal geometry of trochlear groove intraoperatively using a navigation system and its intraoperative use to finetune femoral implant positioning. Despite the different methodology our results were comparable to literature. In fact Iranpour, with a 3D CT-based model on 40 healthy knees, described the trochlear groove as a circle with a radius of 23 mm [7] Iranpour F, Merican AM, Dandachli W, Amis AA, Cobb JP (2010) The geometry of the trochlear groove. Clin Orthop Relat Res 468:782–788. Considering that CT is able to capture only osseous anatomy, including a cartilage layer of 2 mm [3], Culvenor AG, Eckstein F, Wirth W, Lohmander LS, Frobell R (2019) Loss of patellofemoral cartilage thickness over 5 years following ACL injury depends on the initial treatment strategy: results from the KANON trial. Br J Sports Med 53:1168–1173[14] Schub DL, Frisch NC, Bachmann KR, Winalski C, Saluan PM (2013) Mapping of cartilage depth in the knee and elbow for use in osteochondral autograft procedures. Am J Sports Med 41:903–907, it is consistent to the value of 25 mm reported in the present study. An inferior value of 19–20 mm was instead found in 100 healthy Chinese subjects, again using 3D CT-based reconstructions [17] Wang J, Yue B, Wang Y, Yan M, Zeng Y (2012) The 3D analysis of the sagittal curvature of the femoral trochlea in the Chinese population. Knee Surg Sports Traumatol Arthrosc 20:957–963. The authors imputed the differences with previous studies to the variation in reference axis, measurement methods and racial differences. On the other hand, no differences were found between males and females. This is important, because it confirms the hypothesis that femoral groove shape is independent from gender. Furthermore, the patient’s height seems irrelevant as well, since no correlation was found between radius and femoral length. Thus, in the view of patient specific TKA positioning and TKA design, gender and patient’s femoral length does not represent relevant variables to be taken into account to optimize patellofemoral anatomy.

Our results confirm that the orientation of trochlear sulcus on axial plane is about 3° externally rotated with respect to posterior condylar tangent. This confirms what expressed by Riviere et al. [13] Rivière C, Dhaif F, Shah H, Ali A, Auvinet E, Aframian A, Cobb J, Howell S, Harris S (2018) Kinematic alignment of current TKA implants does not restore the native trochlear anatomy. Orthop Traumatol Surg Res 104:983–995, kinematically aligned implants might lead to overstuff of lateral trochlea, and also in works of Talbot et al.[15] Talbot S, Dimitriou P, Radic R, Zordan R, Bartlett J (2015) The sulcus line of the trochlear groove is more accurate than Whiteside’s Line in determining femoral component rotation. Knee Surg Sports Traumatol Arthrosc 23:3306–3316.

From a clinical perspective, the present study offers important insights. First of all, it confirms that intraoperatively it is still possible to map the trochlear groove shape [7], Iranpour F, Merican AM, Dandachli W, Amis AA, Cobb JP (2010) The geometry of the trochlear groove. Clin Orthop Relat Res 468:782–788[9], Monk AP, Choji K, O’Connor JJ, Goodfellow JW, Murray DW (2014) The shape of the distal femur: a geometrical study using MRI. Bone Jt J 96B:1623–1630[17] Wang J, Yue B, Wang Y, Yan M, Zeng Y (2012) The 3D analysis of the sagittal curvature of the femoral trochlea in the Chinese population. Knee Surg Sports Traumatol Arthrosc 20:957–963. Trochlear sulcus can be used as reference to customize implant positioning based, to avoid potential complications [5], Evangelista PJ, Laster SK, Lenz NM, Sheth NP, Schwarzkopf R (2018) A computer model of mid-flexion instability in a balanced total knee arthroplasty. J Arthroplasty 33:S265–S269[8] Mihalko W, Fishkin Z, Krakow K (2006) Patellofemoral overstuff and its relationship to flexion after total knee arthroplasty. Clin Orthop Relat Res 449:283–287. Further studies should be performed in this direction to assess its reliability and verify the influence of femoral implant positioning, according to this landmark, and clinical outcomes after TKA.

The present study has several limitations. First, the measurements were not obtained in healthy patients but in those with OA requiring TKA, without considering the amount of patellofemoral disease that could bias the results. If from one side this could not allow to generalize the findings to general population, on the other hand those are applicable to osteoarthritic patients, which are those that effectively need knee replacement and thus represent the ideal population to investigate the patellofemoral anatomy. Secondly, all measurements were obtained manually by a single examiner. However, the small average root mean square error demonstrates a good reliability in such measurements, thus discarding bias in the method of measurement. Finally, the lack of MRI or CT evaluation did not allow to correlate and validate the navigation measurement with common radiological methods. However, it was not the aim of the study, which was instead designed to assess the in vivo trochlear shape and its correlation with gender and femoral dimension. Lastly, this is a single cohort study with no control group: the correlation between the obtained postoperative scores and surgical strategy defined by the investigator is not demonstrated. Anyway, the addition of an additional landmark, not previously described in literature, resulted to be safe: did not led to complication or unsatisfactory results. Further studies will be recommended to verify this hypothesis.

Conclusion

Modeling of native trochlear groove for intraoperative implant positioning has been demonstrated to be safe and useful. The geometry of the trochlear groove in patients with osteoarthritis could be described accurately as a circle in the sagittal plane with an average radius of 25.5 ± 5.6 mm and a 3.2° ± 4.3° of external rotation, with respect to the posterior condyle axis and a 3.9° ± 5.3° of external rotation, with respect to the mechanical axis.
