pictorial and systematic approach to varus deformity

Summary

Background: Varus deformity is the most prevalent malalignment in total knee arthroplasty (TKA), ranging from mild, passively correctable cases to recalcitrant deformities. Traditional correction often involves extensive soft tissue release, yet controversy remains regarding the optimal sequence and necessity of releasing the superficial medial collateral ligament (MCL).

Objective: This article describes a systematic approach to achieving coronal alignment and gap balancing in varus TKA without superficial MCL release, utilizing computer navigation and specific osteotomy techniques.

Key Points: The methodology is based on the premise that the superficial MCL is often tented by osteophytes rather than contracted. Preoperative and intraoperative assessments must identify extra-articular deformities (EAD) and hindfoot valgus, which influence the weight-bearing axis. Following bone resections perpendicular to the mechanical axes, three clinical scenarios guide soft tissue management. Symmetrical gaps require no further release. If the extension gap is tight medially but the flexion gap is symmetrical, a posteromedial capsular release or a sliding medial condylar osteotomy is indicated. If both gaps are tight medially, a reduction osteotomy of the posteromedial tibial flare is performed, followed by semimembranosus release or corrective metaphyseal osteotomy if EAD is present.

Conclusion: Precise alignment and ligamentous balance in severe varus deformity can be achieved by addressing bone morphology and posteromedial structures. This systematic protocol prioritizes preservation of the superficial MCL and utilizes intra-articular or extra-articular osteotomies to manage complex deformities without requiring constrained implants.

Varus deformity is the commonest type of deformity encountered in patients requiring total knee arthroplasty. It can vary from a mild deformity which corrects easily and completely under anesthesia and needs no release to an extremely recalcitrant deformity that can be challenging to correct. A variety of methods and sequences of releases have been proposed in the past.

The author has performed over 12000 total knee replacements, over 6000 with computer navigation and has made several observations which are published in scientific studies 1-12. Here is the method followed which has satisfactorily achieved alignment and balance without requiring release of the superficial medial collateral ligament2 and without using constrained implants (only posterior cruciate substituting designs have been used in almost all cases)(Fig 1).

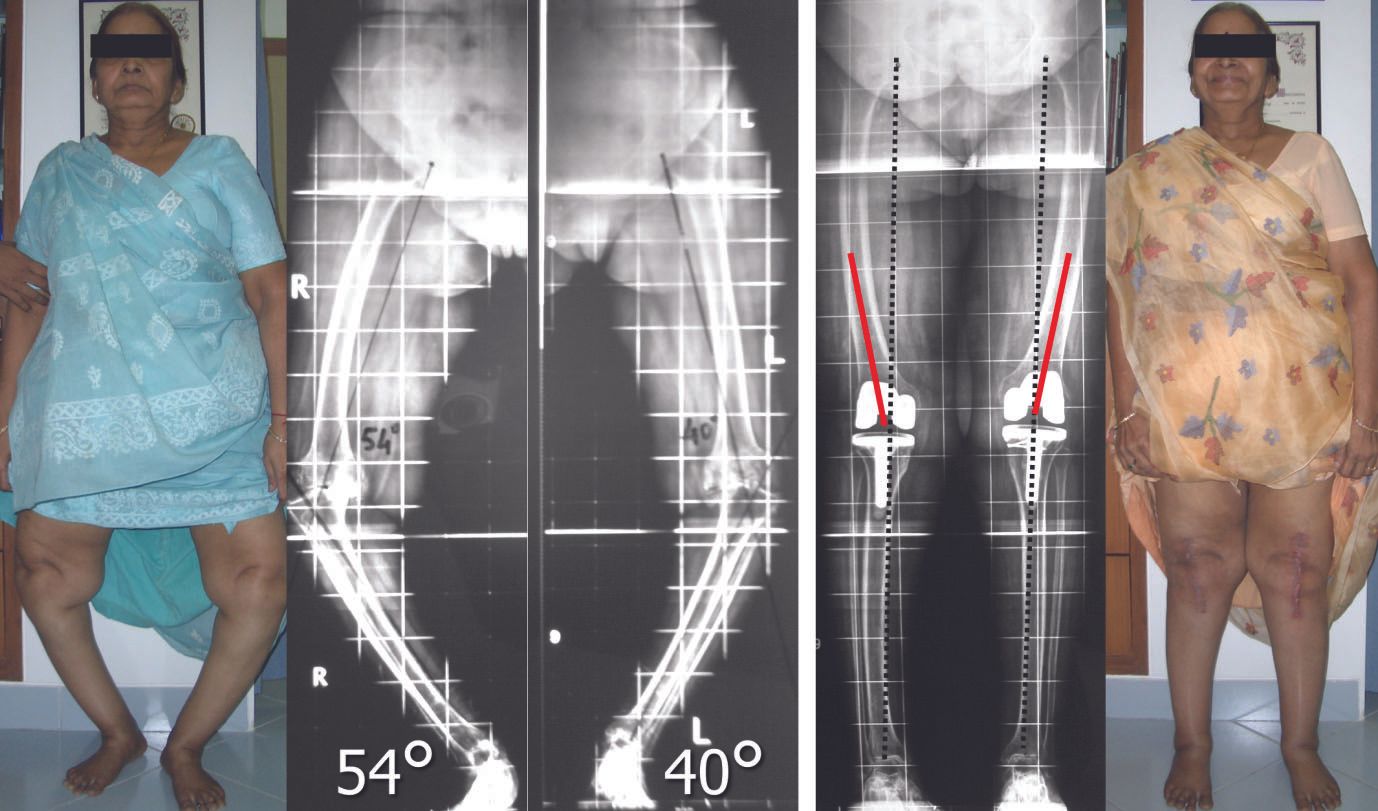

Fig 1: Severe bilateral varus deformity with extra-articular femoral and tibial bowing, pre- and post-operatively

The basic concepts on which the technique is based are as follows:

1. The superficial MCL does not contract in varus deformities

2. The valgus correction angle is extremely variable and needs to be individualised (unless navigation is deployed)5,9

3. Extra-articular femoral and/or tibial deformity needs to be identified and appropriate extra-articular or intra-articular correction performed8

4. Hindfoot valgus (flat foot) needs to be recognised7 (Fig 7)

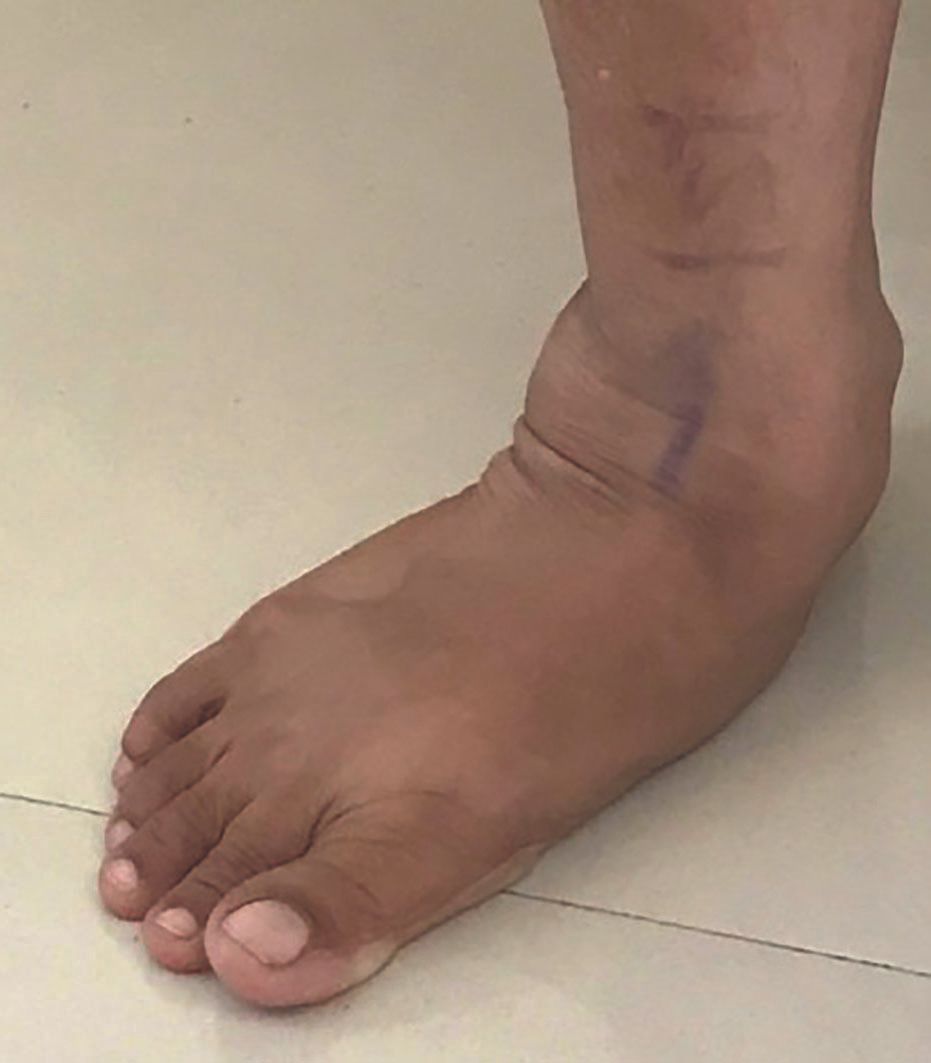

Fig 7. Hindfoot valgus needs to be recognised. This is common with valgus deformity, but is also prevalent in patients with varus deformities. We have reported on its impact – leading to lateral deviation of the weightbearing axis; despite the hip-knee-ankle axis being 180 degrees.

5. Flexion of the knee relaxes the posterior soft tissues and excludes them from contributing to medio-lateral imbalance

6. The proximal tibial cut affects both flexion and extension gaps equally; the distal femoral cut affects only the extension gap. The posterior femoral cut affects the flexion gap; the anterior femoral cut affects patellar tracking.(Figs 2, 3)

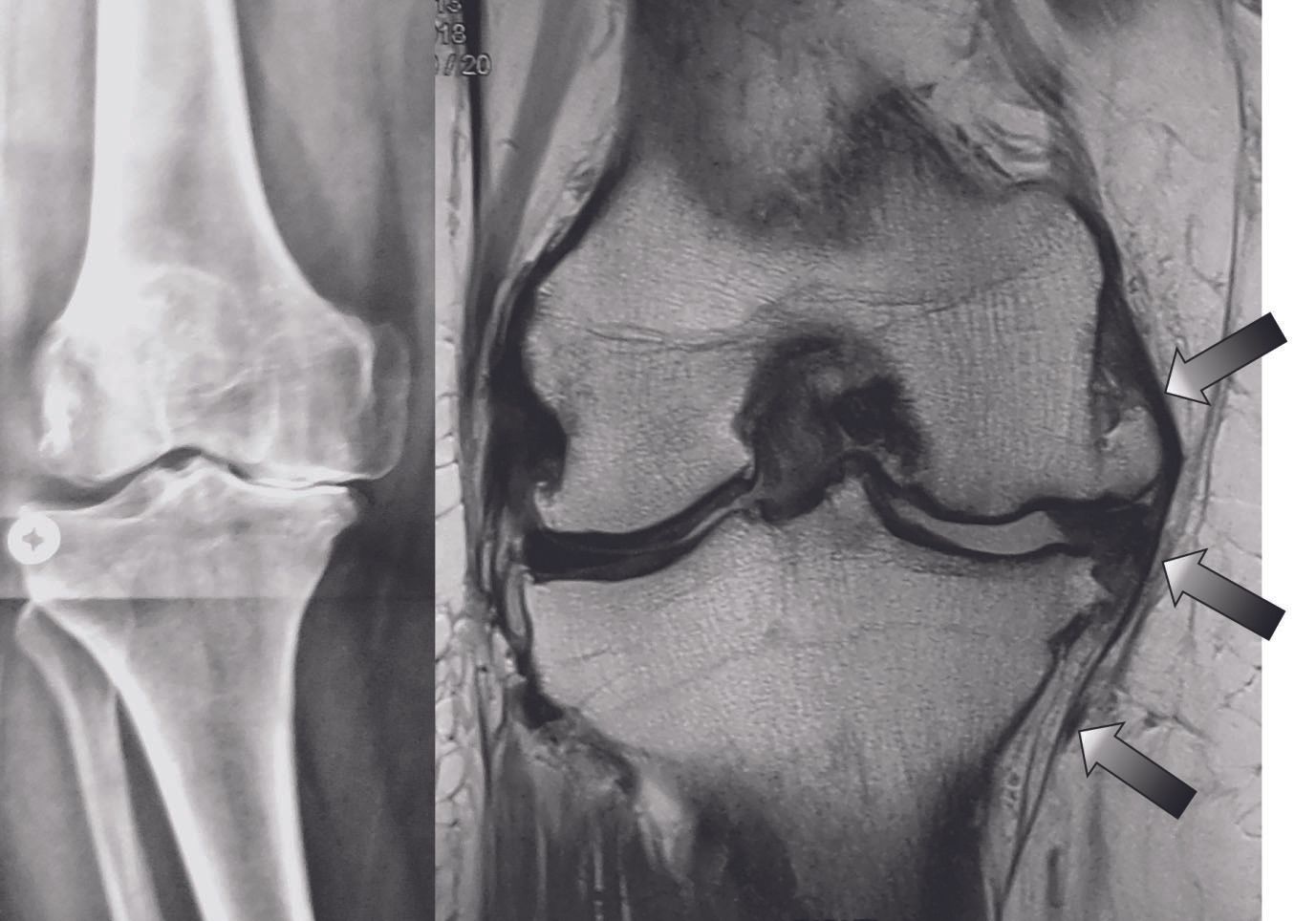

Fig 2: Radiograph and MR scan of knee with large medial osteophytes, showing how the superficial medial collateral ligament is tented over the osteophytes and is not contracted

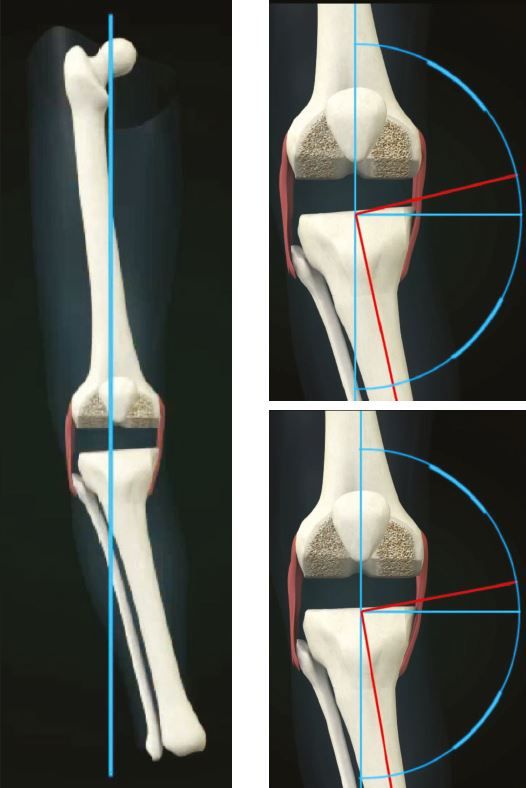

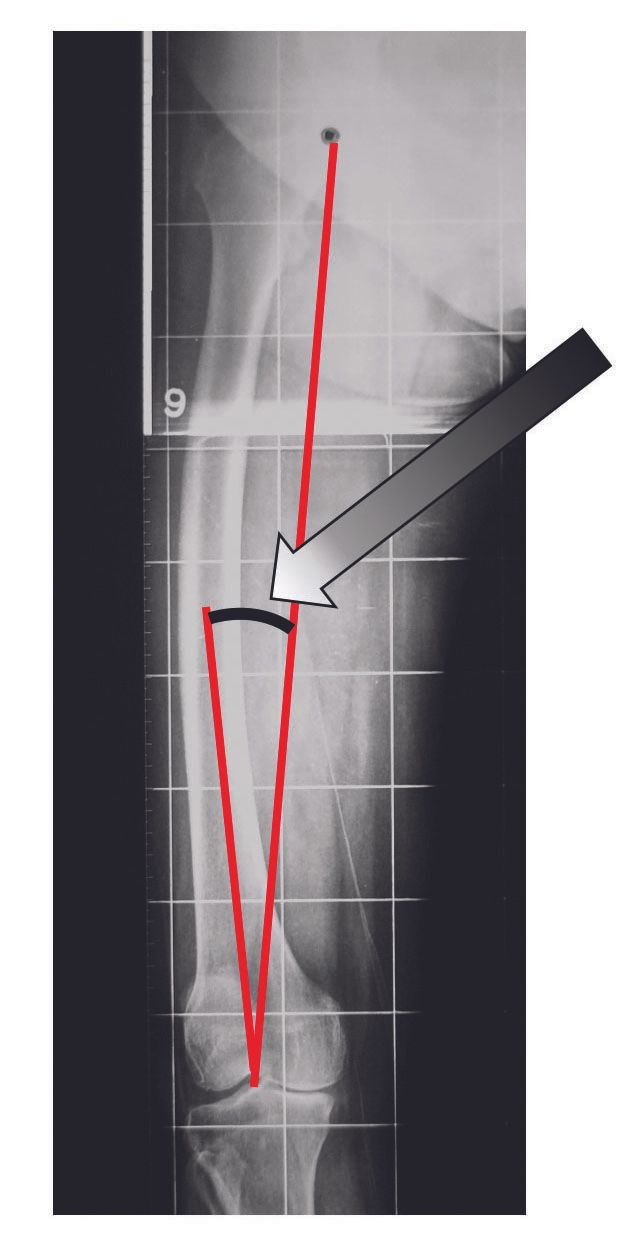

Fig 3. The valgus correction angle can vary from 2-12 degrees.

If extra-articular deformity (EAD) is >20 degrees, close to the joint, and resection likely to damage LCL attachment or if the distal tibial axis falls outside of tibial plateau, then EA osteotomy may be required.(Figs 4-6)

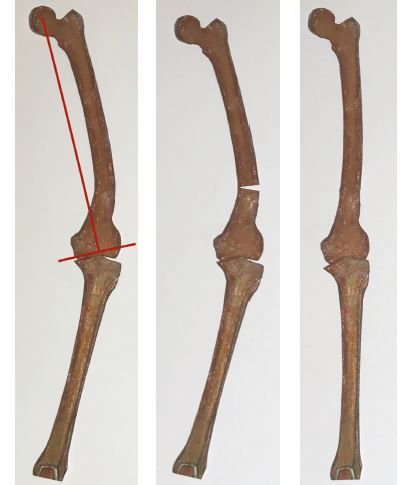

Fig 4. Extra-articular deformity (EAD) in distal femur. The putative resection line (perpendicular to the mechanical axis) is likely to damage the lateral collateral ligament attachment. Hence closed wedge osteotomy is required to correct the deformity. In the femur, this is done first, fixed with IM nail, plate or sleeve-stem assembly, then TKR performed.

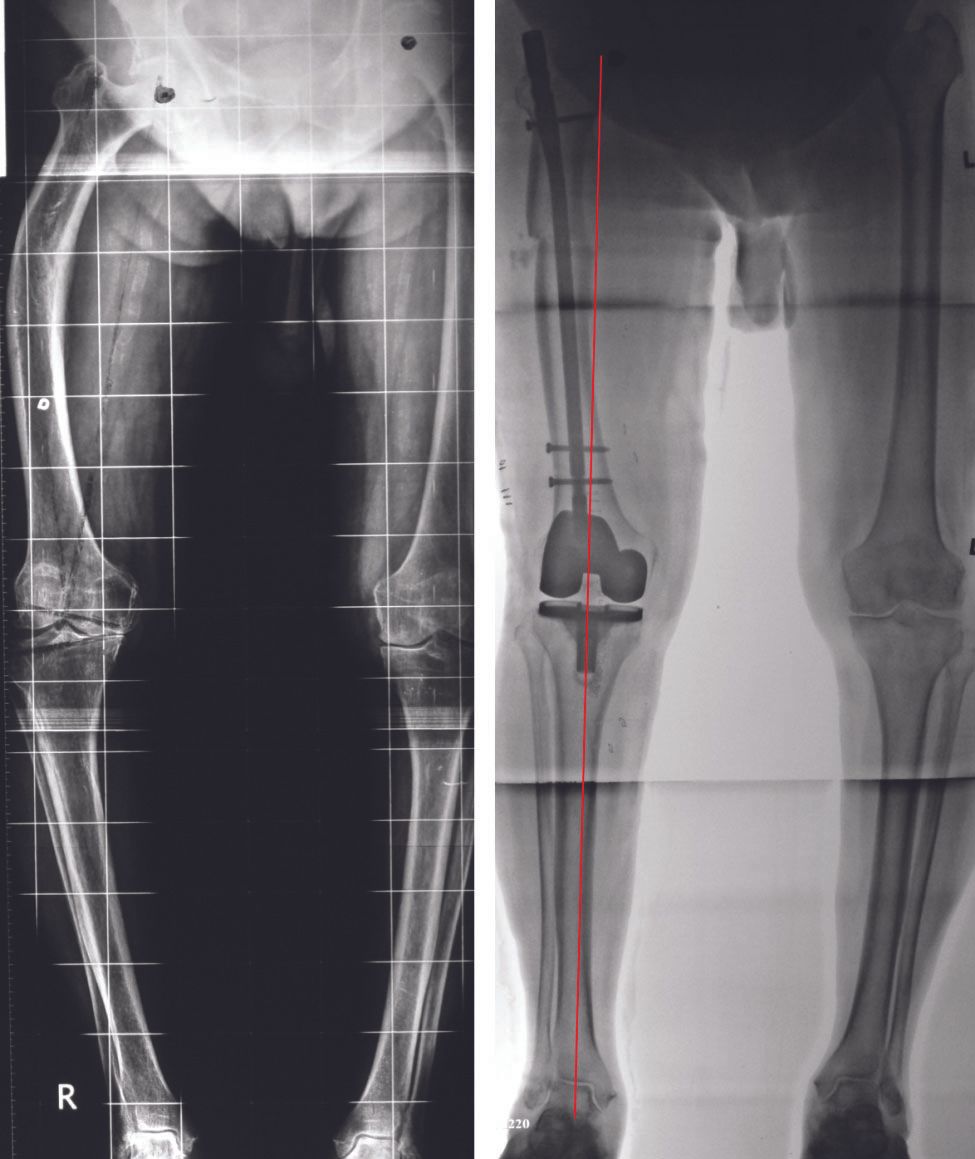

Fig 5. An example of EAD in the proximal femur, where a closed wedge osteotomy was performed, followed by a locked IM nail and a navigated TKR.

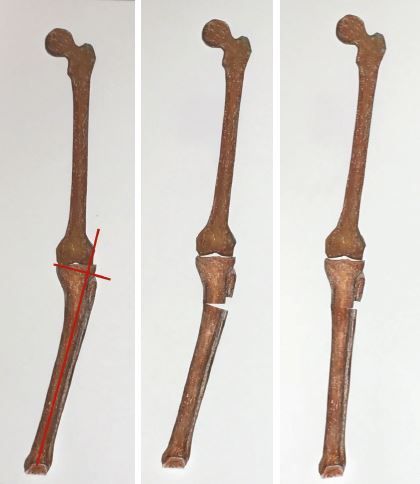

Fig 6. In the tibia, intra-articular (IA) releases are performed and tibia cut to achieve as rectangular a gap as possible. Residual deformity corrected by closed wedge osteotomy with wedge equal to quantum of residual deformity. The osteotomy is fixed with a long stem/plate.

Steps to achieving correct alignment and balance

1. Preoperative clinical assessment:

  • Flexion deformity/Hyperextension
  • Flatfeet

2. Xray assessment

  • Osteophyte presence, location and size
  • EAD Femur
  • EAD tibia
  • Valgus correction angle
  • Amount of tibial subluxation
  • Extent of lateral opening
  • Patella tracking

3. Intra-op assessment after excision of both cruciates & menisci

  • Maximum varus deformity
  • Correctability of varus with valgus stress
  • Amount of flexion deformity persisting with extension stress
  • Maximum amount of hyperextension possible
  • Maximal flexion with gravity with thigh supported

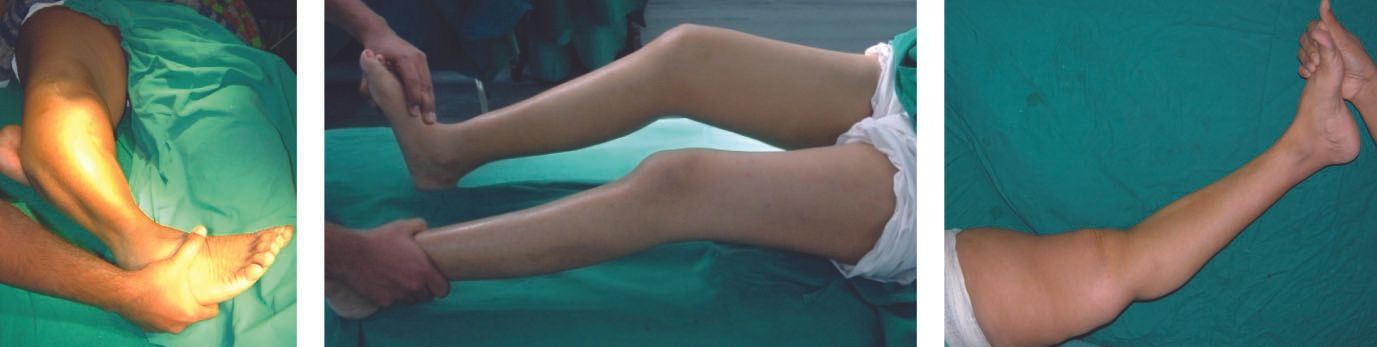

Fig 8. Examination under anesthesia

4. Intra-op assessment after excision of osteophytes

  • Maximum varus deformity
  • Correctability of varus with valgus stress
  • Amount of flexion deformity persisting with extension stress
  • Maximum amount of hyperextension possible
  • Maximal flexion with gravity with thigh supported

5. Perform tibial and distal femoral cuts perpendicular to mechanical axes

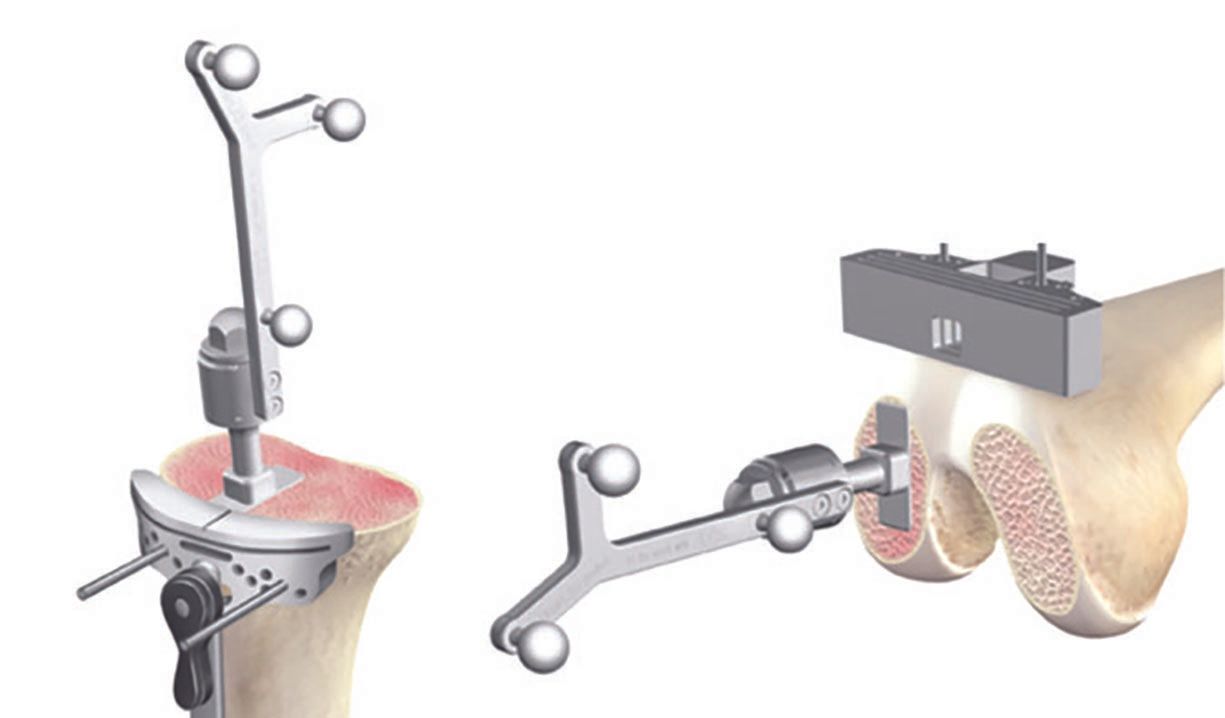

Fig 9. Proximal tibial and distal femoral cuts are performed with conventional jigs or navigation.

6. Check extension gap symmetry with spacer block/tensioner

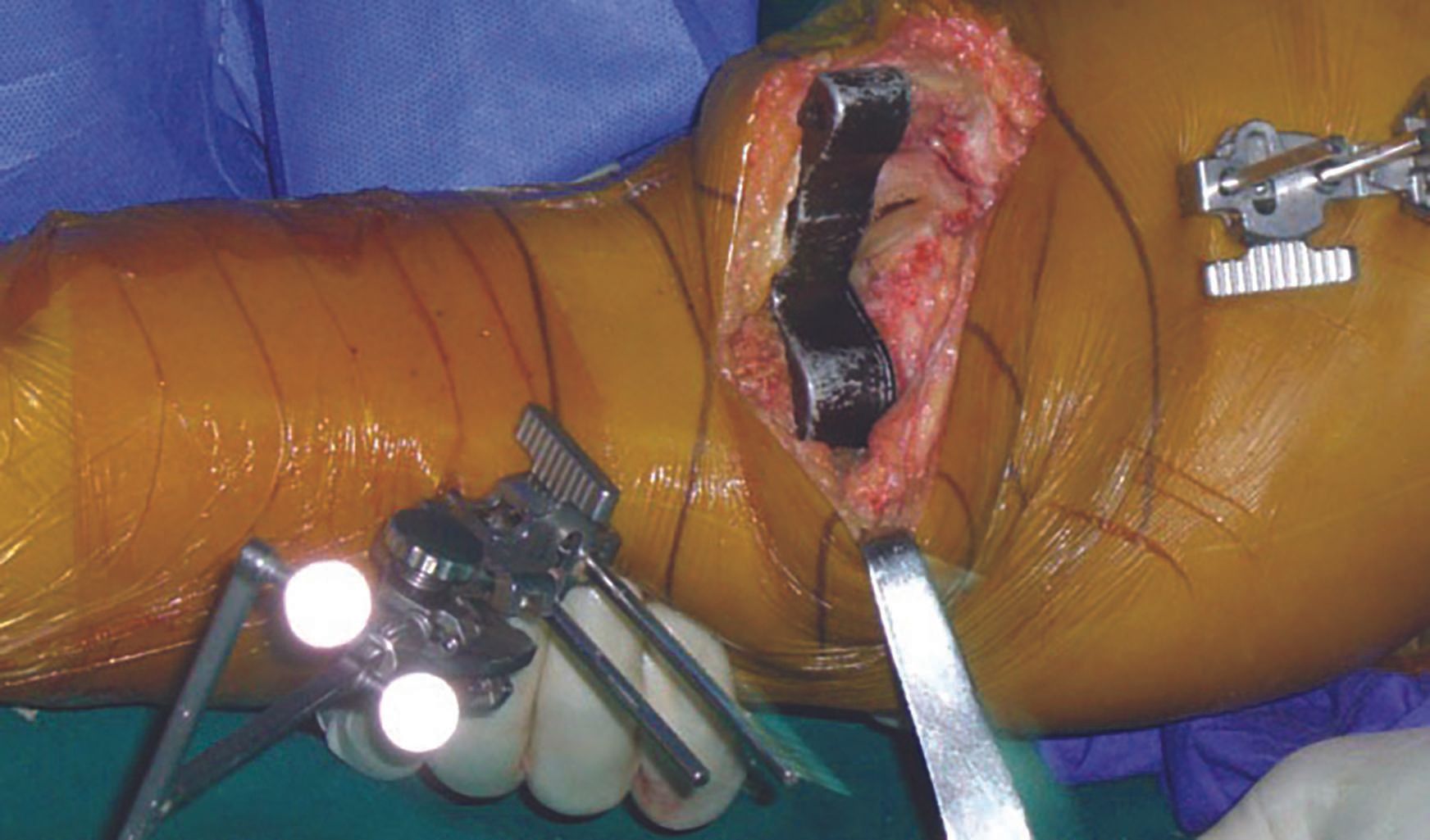

Fig 10. Using a spacer block to check medio-lateral ligament symmetry of extension gap by giving a varus and valgus stress

7. Check flexion gap symmetry with spacer block/tensioner. It helps to have a non-slotted cutting block so the position, rotation and size of the femoral component can be assessed by using a tensioner or spacer block prior to making the bone cuts.

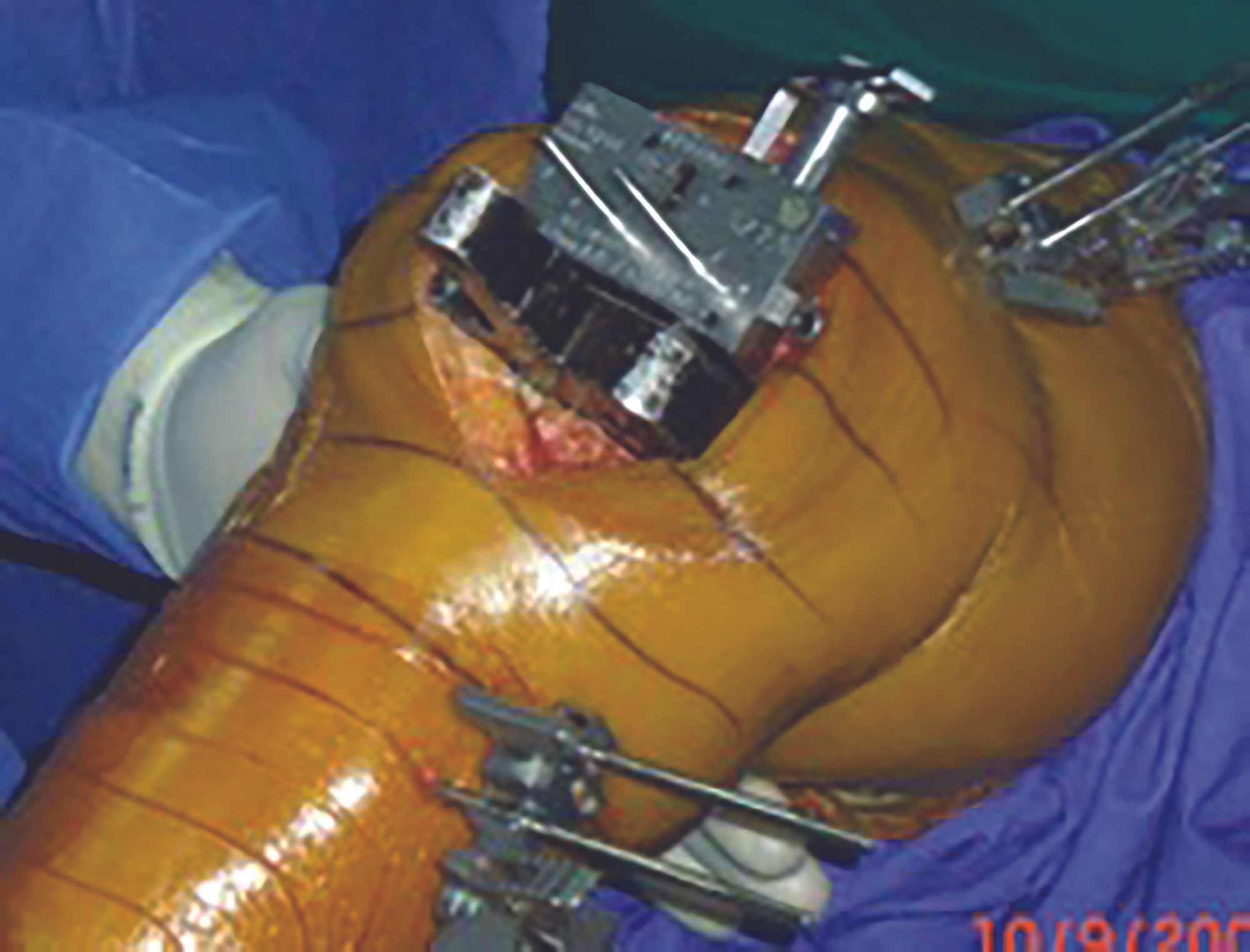

Fig 11. Assessing flexion gap symmetry with the thigh supported and a varus–valgus stress applied to the leg.

8. Based on the above, there are 3 scenarios with corresponding specific releases which need to be performed.

Scenario 1:

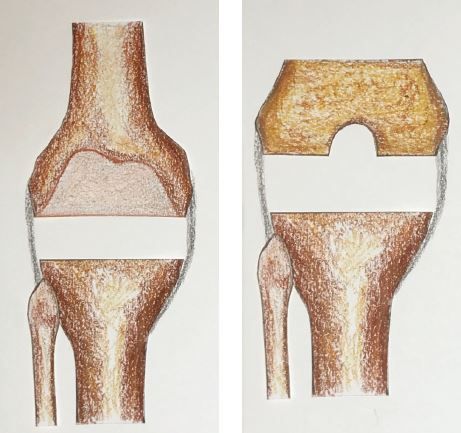

Fig 12. Symmetrical extension and flexion gaps

Scenario 2:

  • Extension gap tight medially
  • Flexion gap symmetrical
  • Implies that collaterals balanced
  • Therefore either contracture is posteromedial or it implies that there is EAD in the femur. If the former is the case, it should correct with posteromedial capsular release2
  • If it doesn’t correct, Sliding Medial Condylar Osteotomy4 may rarely be required.

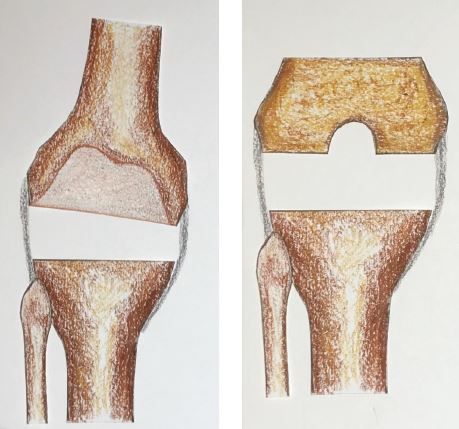

Fig 13 Extension gap is trapezoidal, being tighter medially; flexion gap is symmetrical

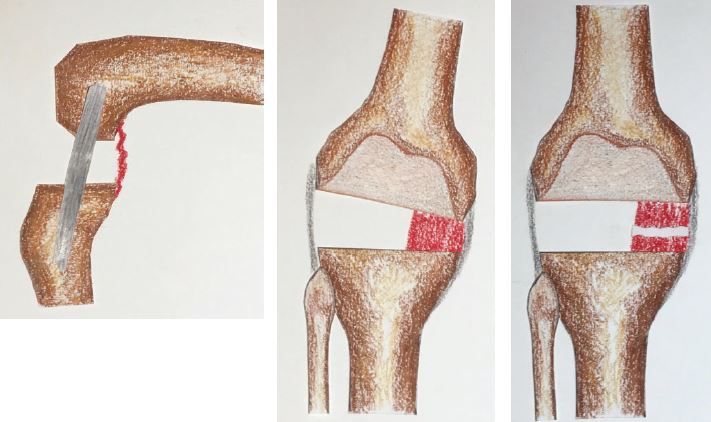

Fig 14. As the posterior structures are relaxed at 90 degrees, and the medial and lateral structures are balanced in flexion, tightness in extension medially can only be due to the contracted posteromedial structures (capsule, posterior oblique ligament, semimembranosus insertions into the capsule). By resecting a segment of the posteromedial capsule, one can achieve symmetry in extension, without altering the medio-lateral flexion gap symmetry.

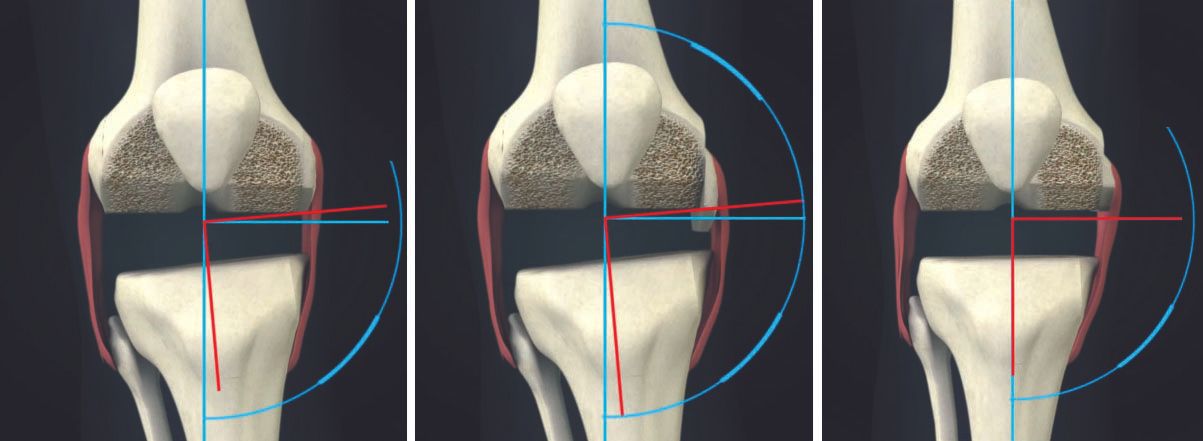

Fig 15. Sliding Medial Condylar Osteotomy. The condyle is only slid distally, not anteriorly or posteriorly
Fig 16. Example of SMCO in a knee with significant EAD. The medial condyle slid distally is fixed with 3 cancellous screws.

In the presence of femoral EAD, a persistent trapezoidal extension gap is addressed by distally sliding the medial condyle by the amount required to equalise medial and lateral gaps in extension. As the condyle is not slid anteriorly or posteriorly, it does not affect the flexion gap symmetry.

Scenario 3:

  • Extension gap tight medially
  • Flexion gap tight medially
  • Reduction osteotomy3 of the posteromedial tibial flare helps to achieve correction by reducing the tenting of the MCL
  • If a trapezoidal gap persists it implies severe contracture of posteromedial structures and semimembranosus. So the next step is to resect a segment of the posteromedial capsule and release the semimembranosus from its tibial attachment
  • If these are released and deformity persists, it implies that there is a tibial EAD. This should have been detected and anticipated in the planning stage. Obtain a rectangular extension gap by re-cutting proximal tibia. Any residual varus deformity is corrected by closed-wedge osteotomy at apex of deformity usually in the tibial metaphysis.

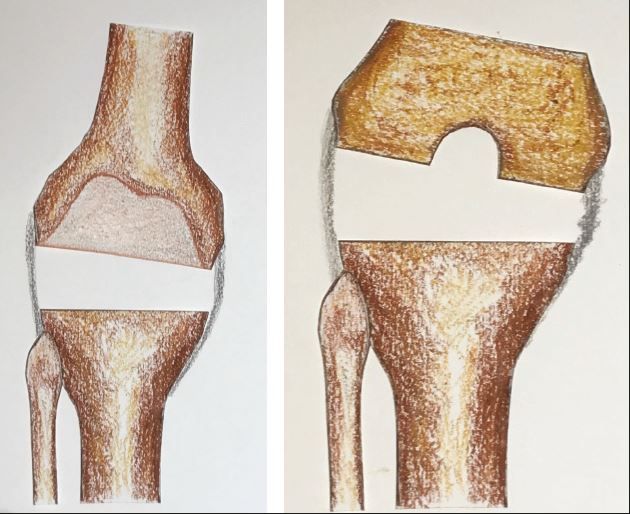

Fig 17. Both extension and flexion gaps are asymmetrical (trapezoidal) being tighter medially

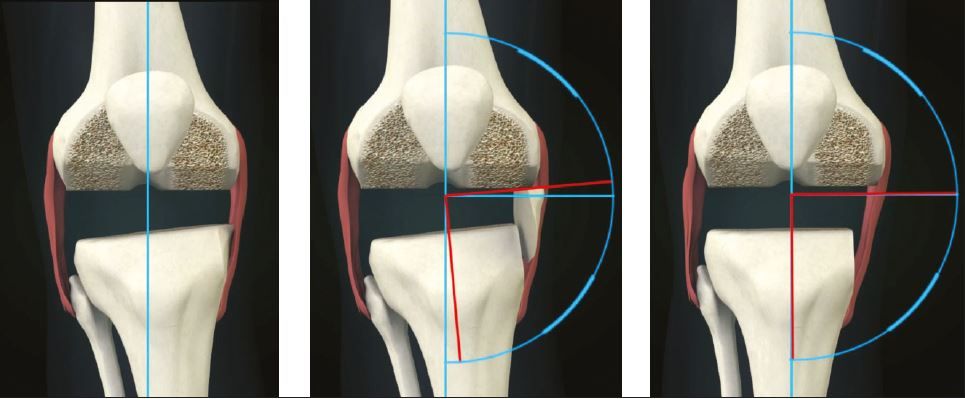

Fig 18. Reduction osteotomy of posteromedial flare of the tibia
Fig 19. EAD of tibial metaphysis. Initial intra-articular release followed by a re-cut of tibia, if required, to achieve a symmetrical gap.
Fig 20. The residual varus is corrected by a closed wedge osteotomy where the wedge angle=residual varus deformity

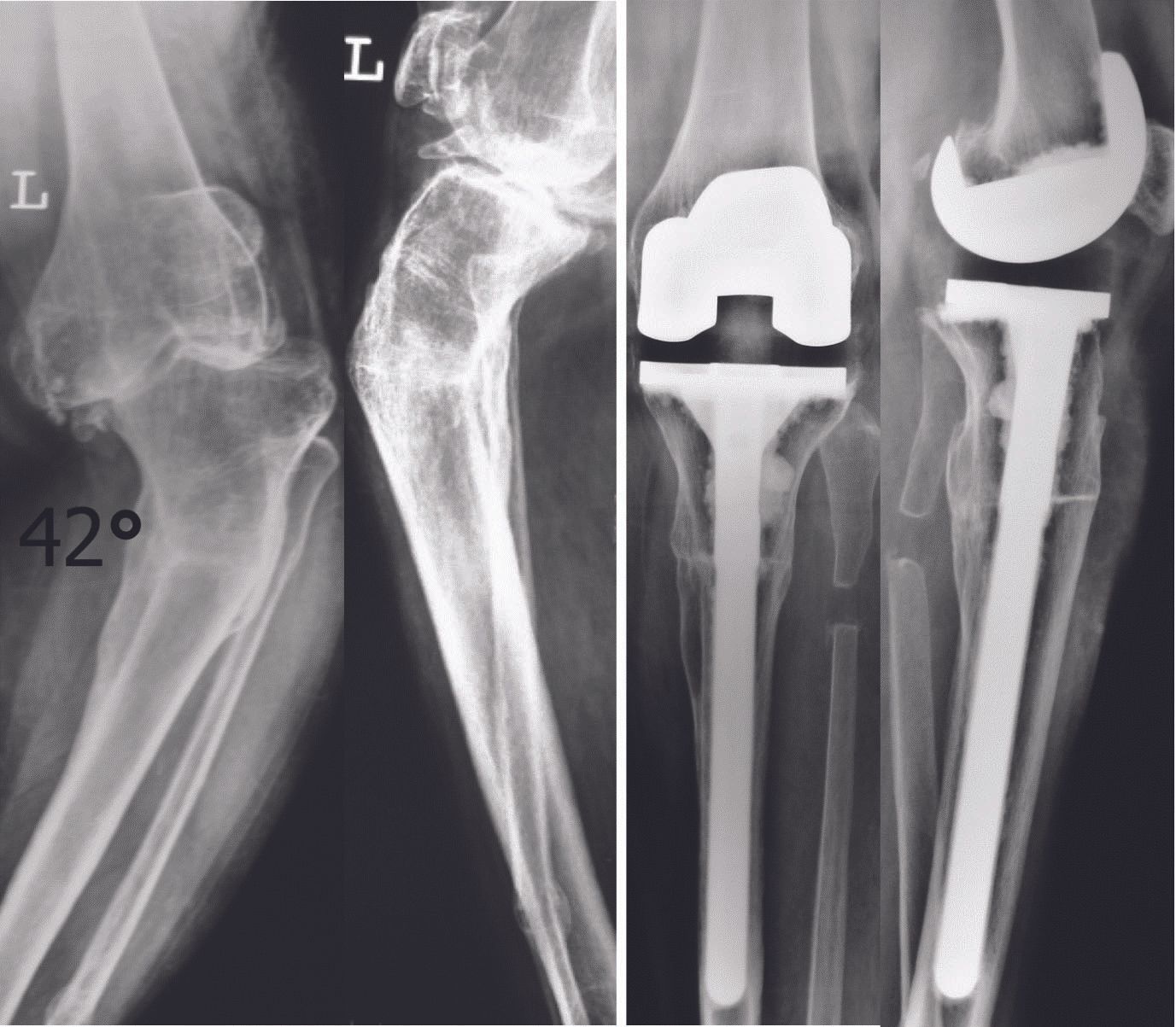

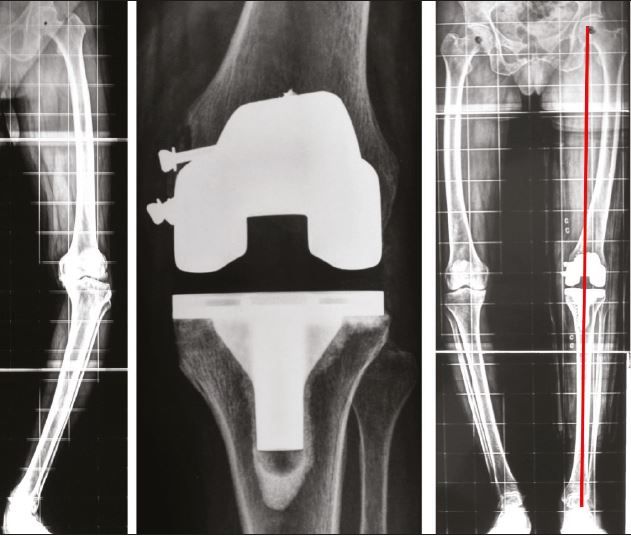

Fig 21. Example of a severe biplanar EAD in tibia, corrected with a closed wedge osteotomy, resection of a length of fibula, and stabilised with a long stem
