PCL reconstruction using INLAY technique tips and tricks

Introduction

High energy trauma represents with 82 % the most frequent etiology of PCL injuries. 92 % of these occur in combination with other ligaments and are diagnosed as complex knee ligament injuries. Only 18 % are diagnosed as isolated PCL ruptures and are most commonly related to sports injuries. Chronic PCL instability leads to change of knee kinematics with increased anteromedial joint pressure force by negative Bandi effect as well as to increased patellofemoral pressure and secondary osteoarthritis.

The natural history of the posterior knee instability leads to:

- Increased posterior translation of the tibia
- Change of center of rotation
- Increased cartilage damage of the anteromedial tibia plateau
- Increased pressure on the patellofemoral joint and osteoarthritis

Posterior knee instability is still nowadays under diagnosed and therefore a detailed algorithm for clinical evaluation of knee instability is necessary.

Clinical Examination

Anterior Knee Instability is diagnosed by using Lachman- test and the amount of instability is graded +/ ++/ ++ (0 – 15 mm). The anterior drawer test is carried out as well and performed in internal – neutral and external rotation to detect additional peripheral instability.

PCL Instability is clinically diagnosed by using the posterior sag sign and additional evaluation of the amount of anteromedial step off. As PCL injuries are often associated with peripheral instability clinical examination of these structures has to be carried out also. Therefore, detailed clinical examination of medial and lateral and especially posteromedial and posterolateral instability has to be adressed. Instability of popliteal corner is seen by using recurvatum test and dial test.

Imaging Screening

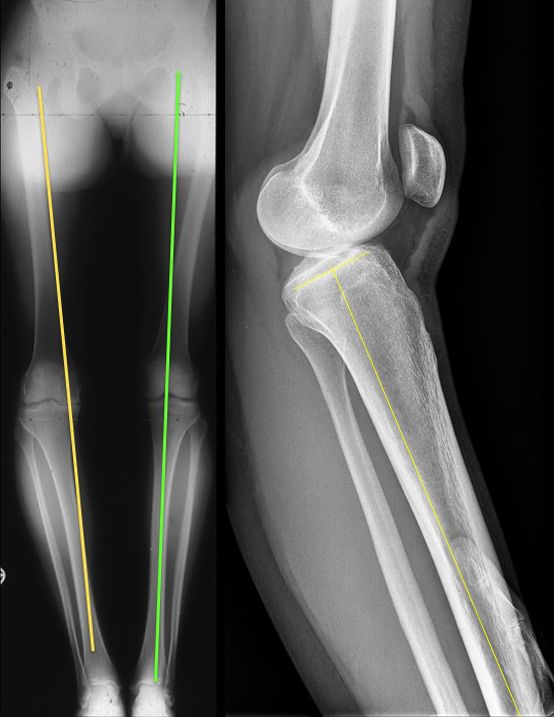

After clinical examination normal x-rays of the knee ap and lateral view is performed. In chronic posterior knee instability, we add standing long film ap x-rays bilateral as well as lateral long film (1/3 Femur and 2/3 Tibia) to detect hyperextension and to measure the slope (Fig 1).

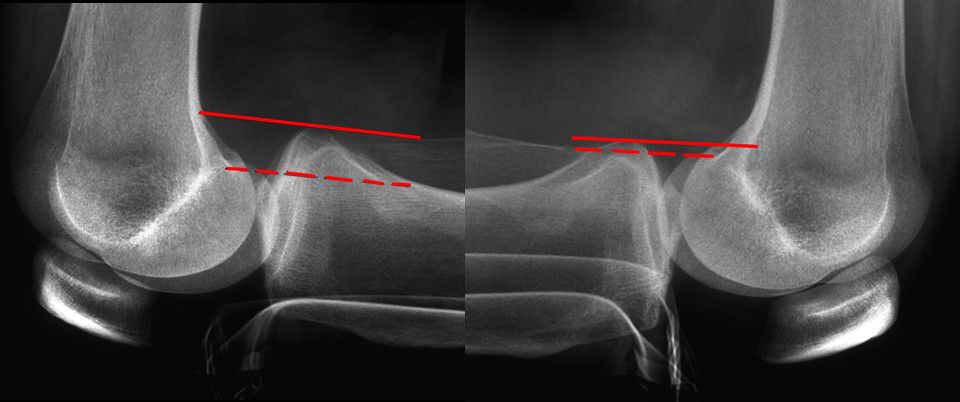

This is followed by stress x-rays routinely. In contrast to Telos used stress x-rays we prefer the kneeling view according to Bartlett which does not allow muscular compensation of the instability (Fig 2). MRI is also performed routinely to get information about the personality of PCL rupture and associated lesions.

Indication for conservative treatment

Indication for conservative treatment for posterior knee instability is described for isolated PCL ruptures with maximum 8 mm unidirectional posterior knee translation and normal frontal alignment. Conservative treatment is carried out using a posterior sag protection brace for minimum 8 weeks and intensive quadriceps strengthening rehabilitation.

Indication for operative treatment

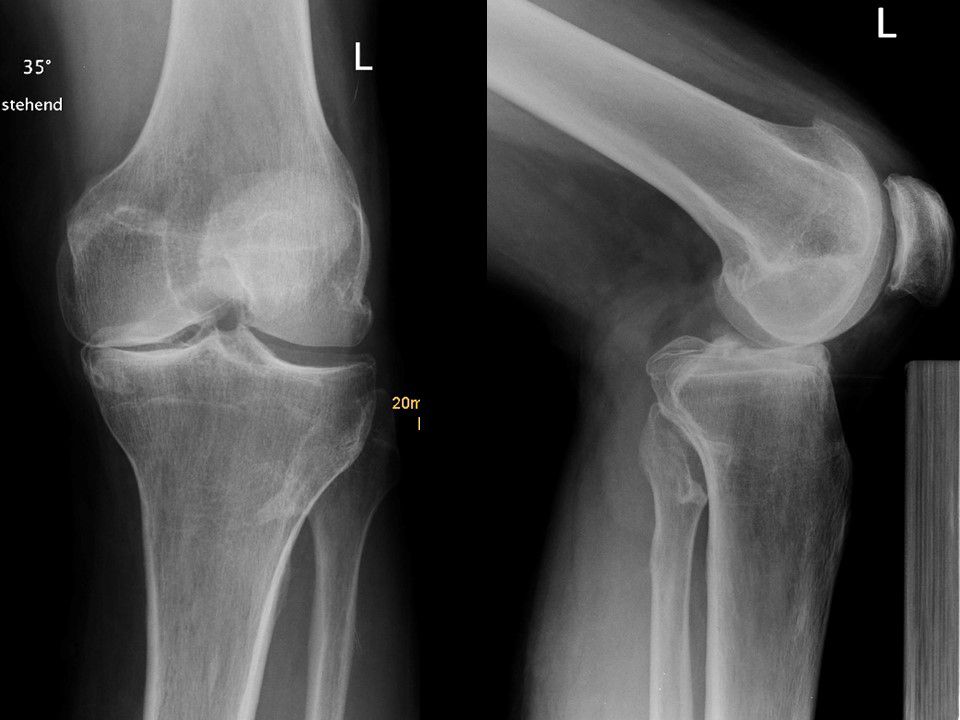

The Indication for operative treatment is based on the amount of posterior translation (borderline according to literature 8 mm) and the additional peripheral instability, which leads to increased posteromedial or posterolateral rotational instability. The indication goes along with the degree of increased rotatory instability and malalignment (Fig 3).

Technique for PCL reconstruction

Different techniques are described in the literature:

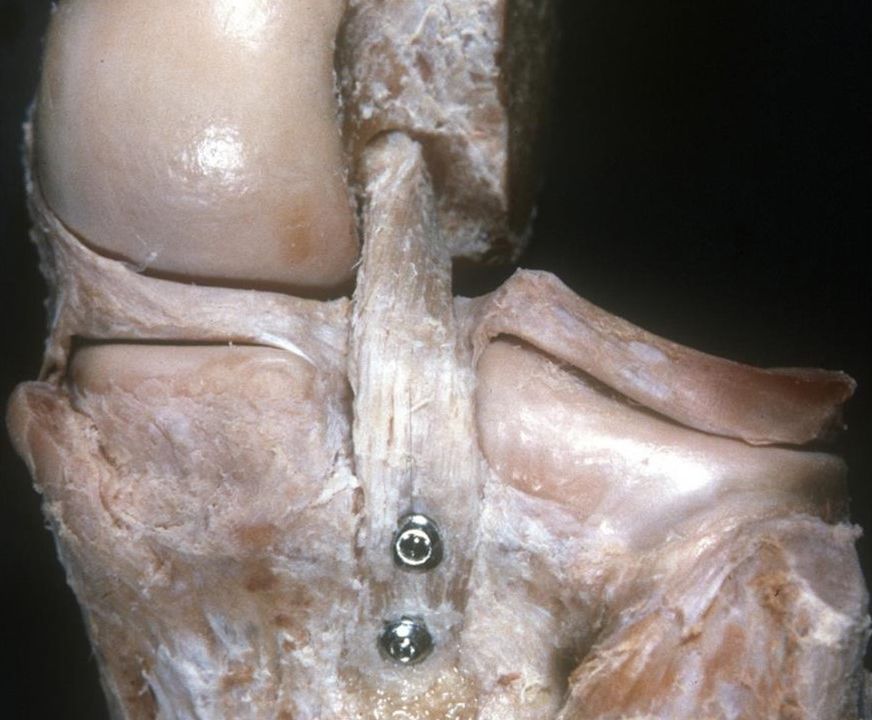

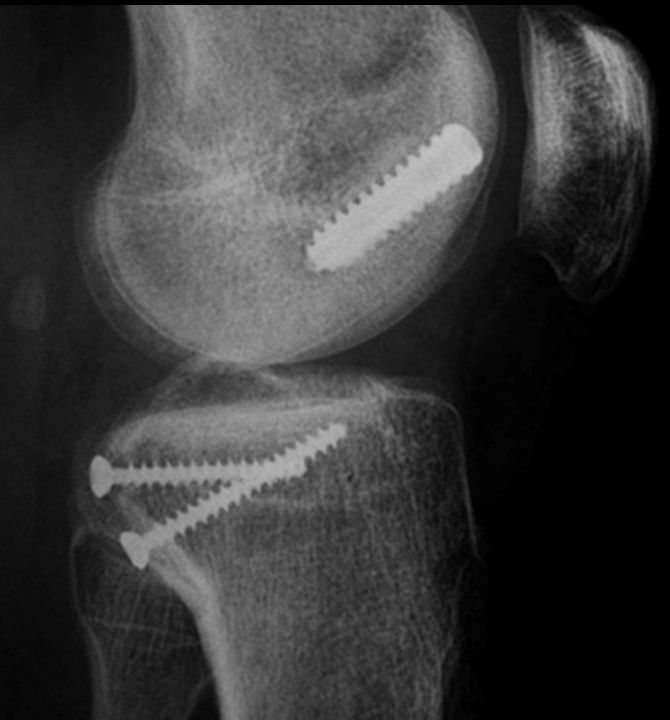

- Inlay technique (Fig 4 & 5) versus transtibial tunnel technique (Fig 6 & 7)
- Single bundle versus double bundle

The final outcome of the different techniques in the literature is similar when autografts are used. In biomechanical studies the inlay technique is superior to transtibial technique as the second one leads to more postoperative graft elongation due to the killer turn when the graft goes around the posterior tibia. Allografts (availability depends on legal issues of the different countries) are used in reconstruction of complex knee instability and knee dislocations or PCL revision reconstruction. Their outcome as substitute for autologous PCL graft is described in most of the literature inferior compared to autografts. Today there is no indication using synthetic grafts as PCL substitute anymore. There is a small window using fiber tapes as augmentation and ligament bracing in acute PCL reconstructions. We have been performing open inlay technique for many years and changed to arthroscopic inlay technique 10 years ago.

Technique tips and tricks

Required special instruments:

- Electric leg holder with integrated tourniquet
- Imaging intensifier
- 30° + 70° arthroscope
- Retro-drill
- Flip cutter

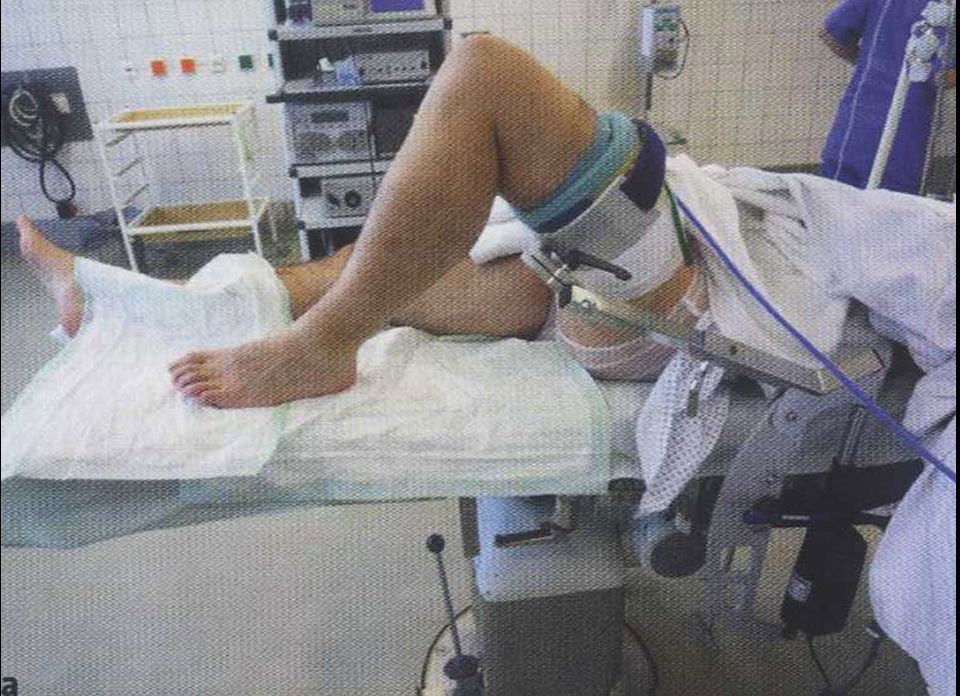

Patient is placed in supine position and an electric leg holder with integrated tourniquet is used (Fig 8).

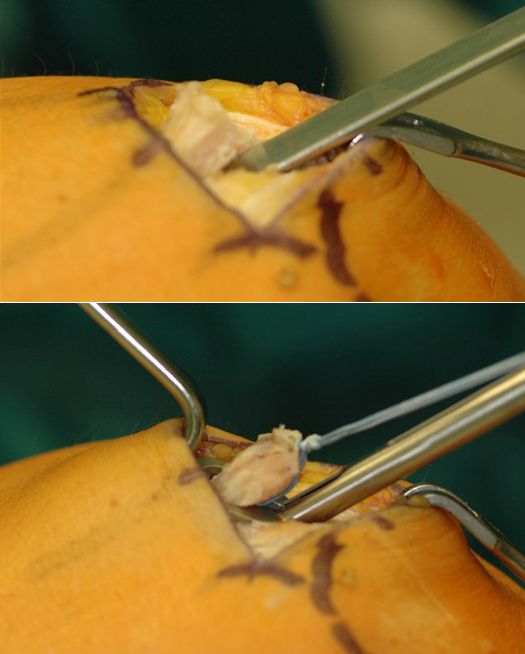

The quadriceps tendon is used as graft for this procedure. The graft is harvested through a 8 - 10 cm longitudinal incision. This procedure can also be performed using a 4 – 5 cm horizontal incision and harvested subfascial using special graft harvesting instruments (Fig 9).

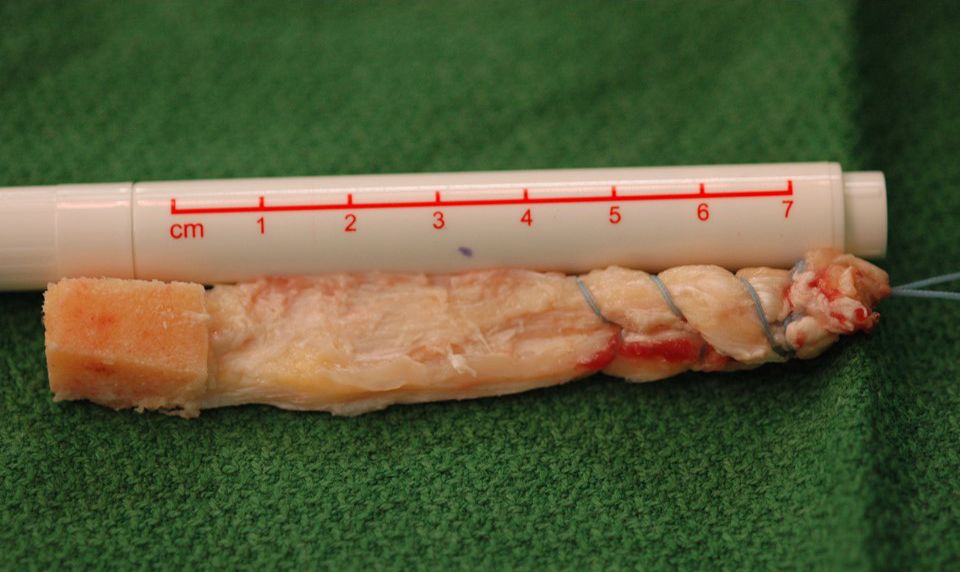

The fascia is longitudinal incised and the graft with partial thickness is incised and finally the bone block of the superior pole of patella is taken using an oscillating saw. The tendentious part is minimum 8 cm in length / 11mm wide and 7mm deep. The adjacent osseous part of the graft is 11mm long / 11mm wide with a thickness of 10mm (Fig 10).

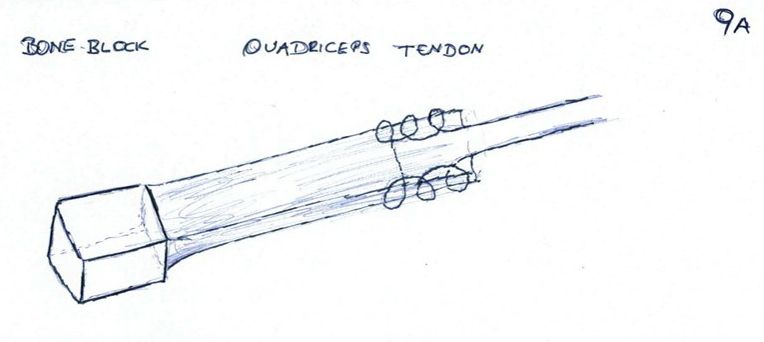

The tendinous part is armed using a fiberloop at the last 3 cm and a 2mm central drill hole is made in the bone block (Fig 11).

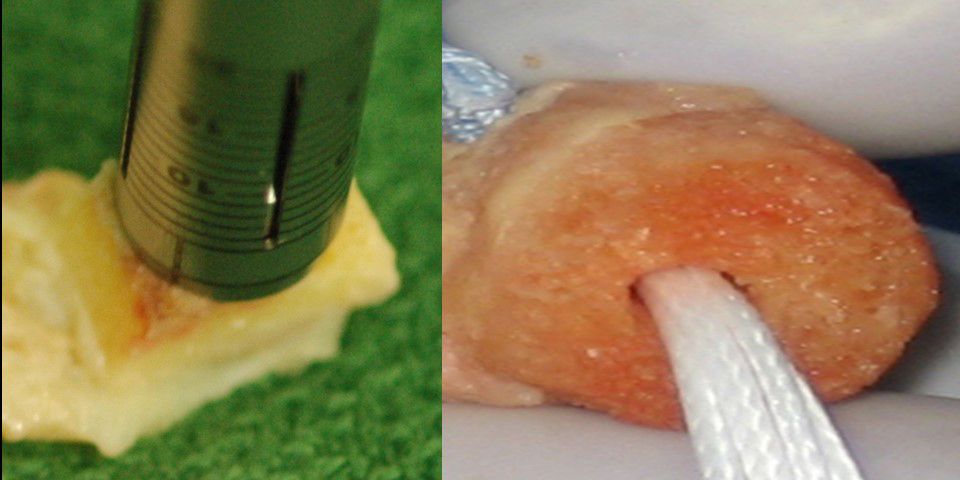

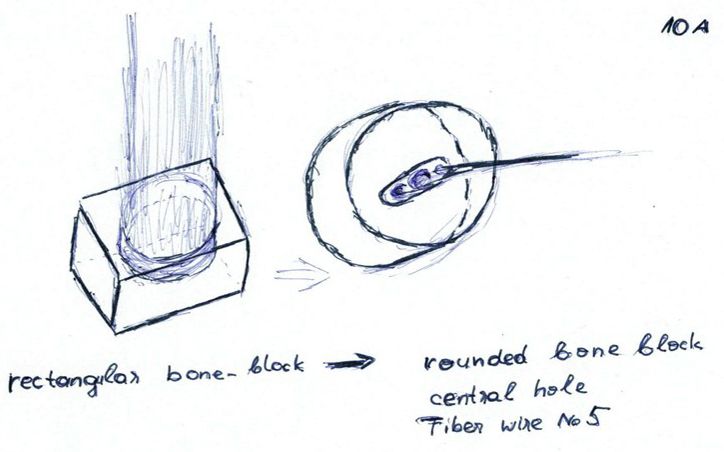

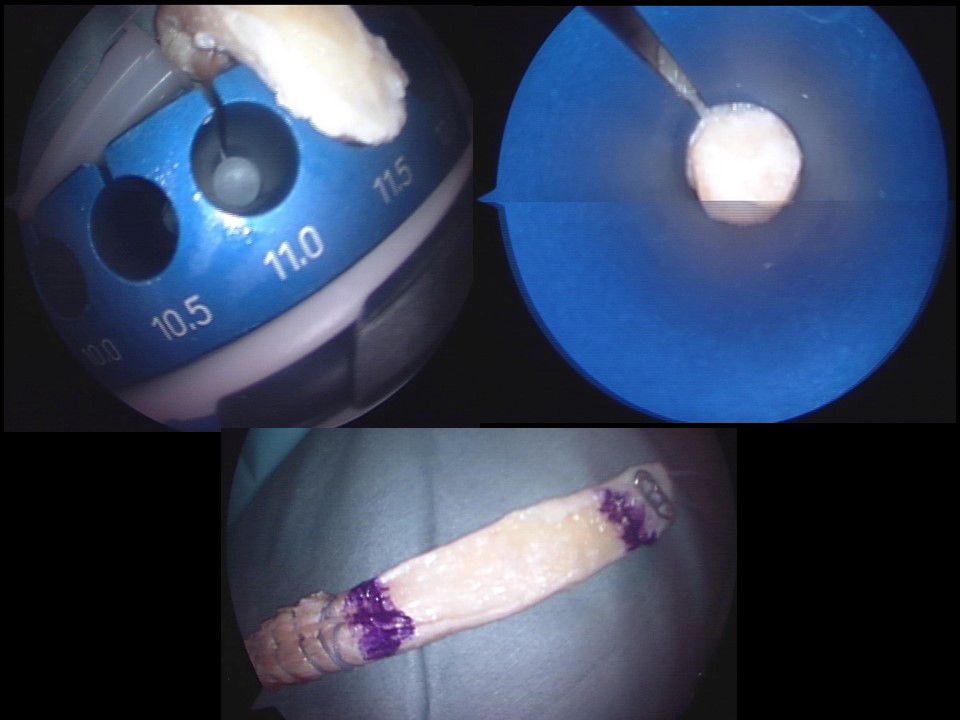

Afterwards the bone block is downsized to a round block (11 /11 / 10 mm) using a high-speed oscillating saw (Fig 12). A fiber wire Nr 5 is armed with a small two-hole plate -which lies on the cortical side of the bone block – and inserted through the central drill hole (Fig 13). The dimension of the graft is measured (Fig 14).

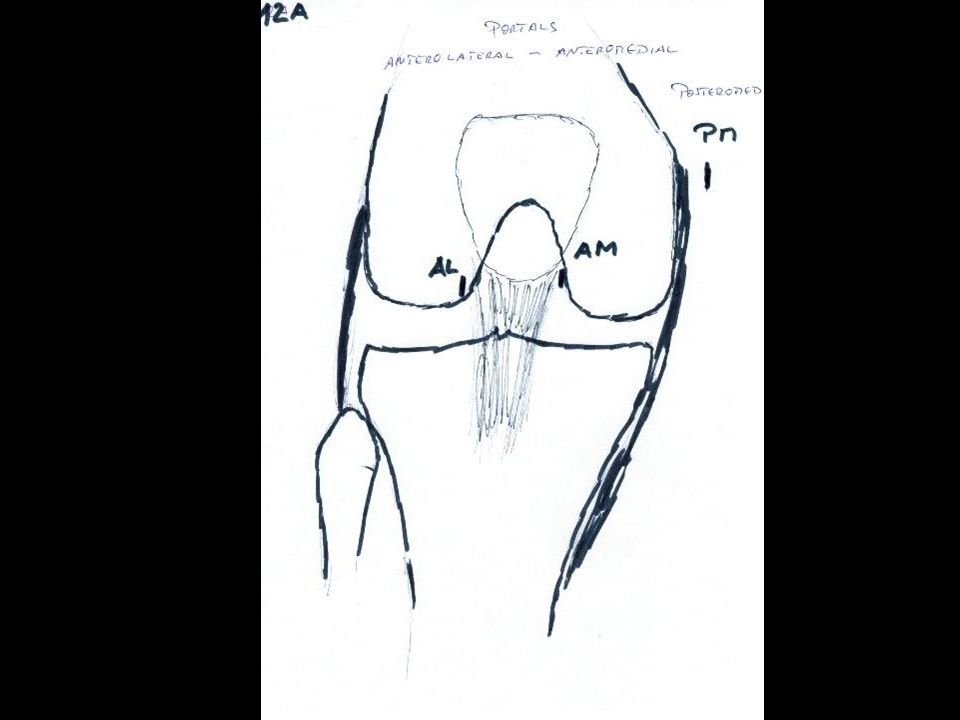

The portals for arthroscopy are primarily made anteromedial and anterolateral adjacent to the apex of the patella (Fig 15 & 16).

First a 30° scope is used and diagnostic arthroscopy with inspection of all 3 compartments is carried out. Meniscus surgery is performed if necessary. This is followed by dynamic examination under arthroscopic visualization (Fig 17).

Scar tissue formation of the ruptured PCL is debrided using the coblator and the PCL insertion on the femoral condyle is identified.

Now the 30° optic is changed to 70° optic for better visualization of the posterior slope of the tibia to evaluate the insertion side of the PCL. An 18-gauge needle is inserted from posteromedial to evaluate the correct entry point for inserting the working cannula. Following the posterior incision, the 7mm cannula is inserted and fixed by a suture. From the posteromedial portal under direct visualization with the 70° scope debridement of the PCL remnants is carried out from anteromedial (Fig 18).

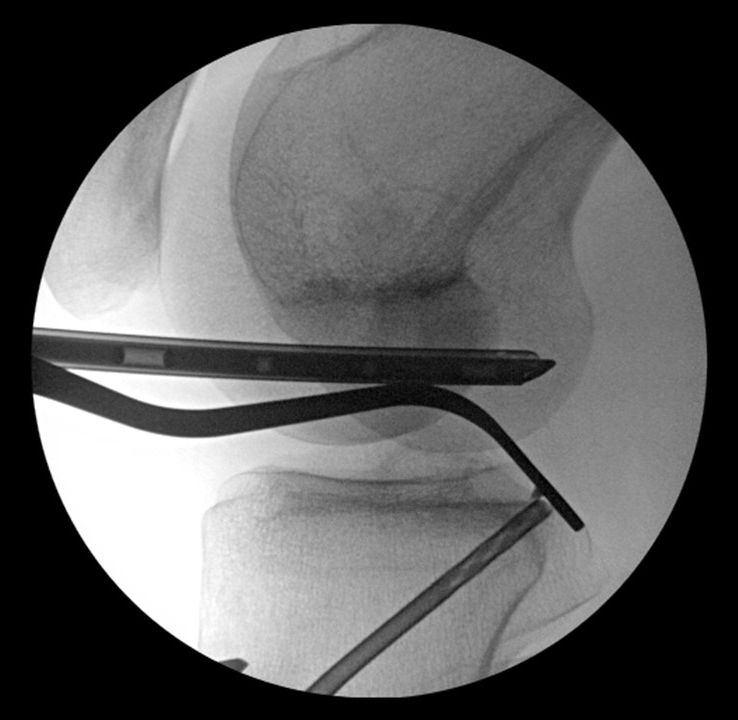

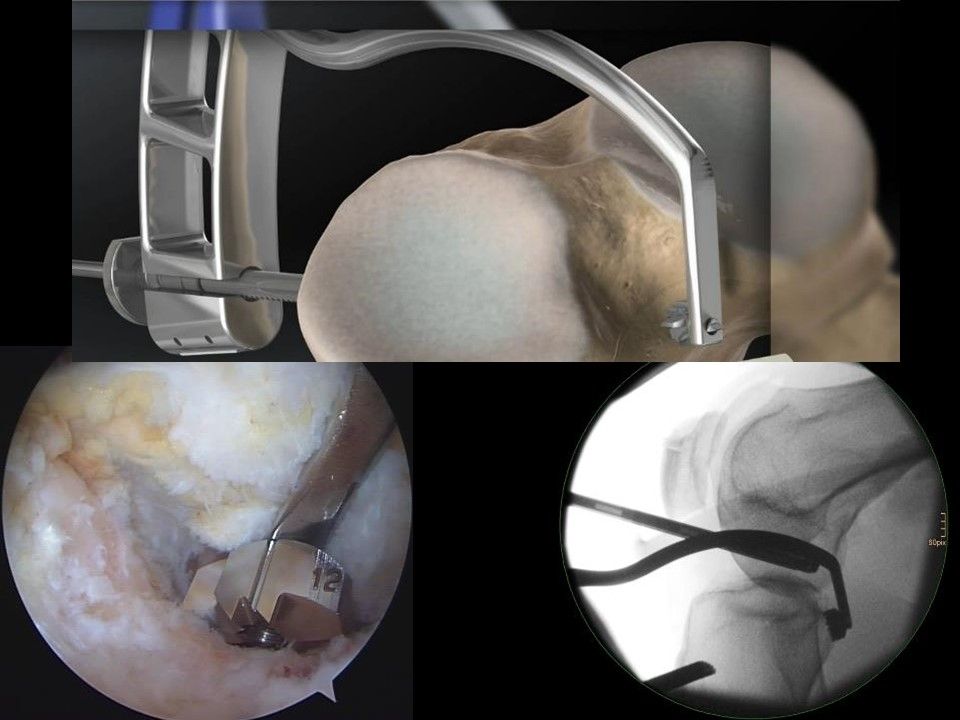

Now the retrodrill guide system with the 12mm cutter from anterior is brought in and the position of the cutter is controlled by lateral view under fluoroscopy (Fig 19).

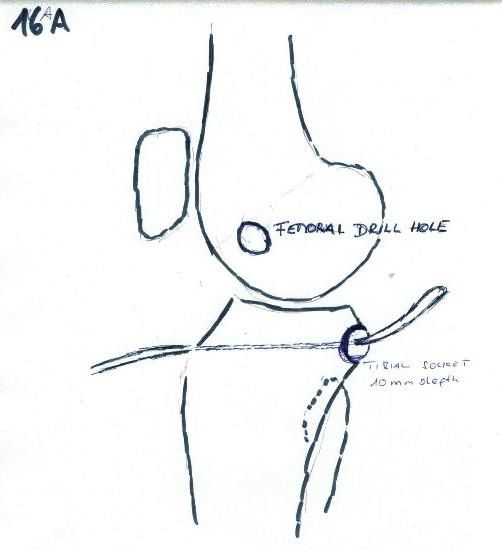

Then a 10mm socket on the posterior tibia at the level of the previous physis line is drilled and the retrodrill while leaving the cannulated pin is withdrawn (Fig 20). A fiber stick suture is inserted in the cannulated pin and temporarily pulled out posteromedial. The femoral tunnel in size congruent to the tendon part of the graft is drilled with the retrodrill system. A tiger stick suture is inserted femoral from outside-in and catched together with the previous tibial inserted fiber stick (Fig 21) intraarticular and pulled out through the anteromedial portal.

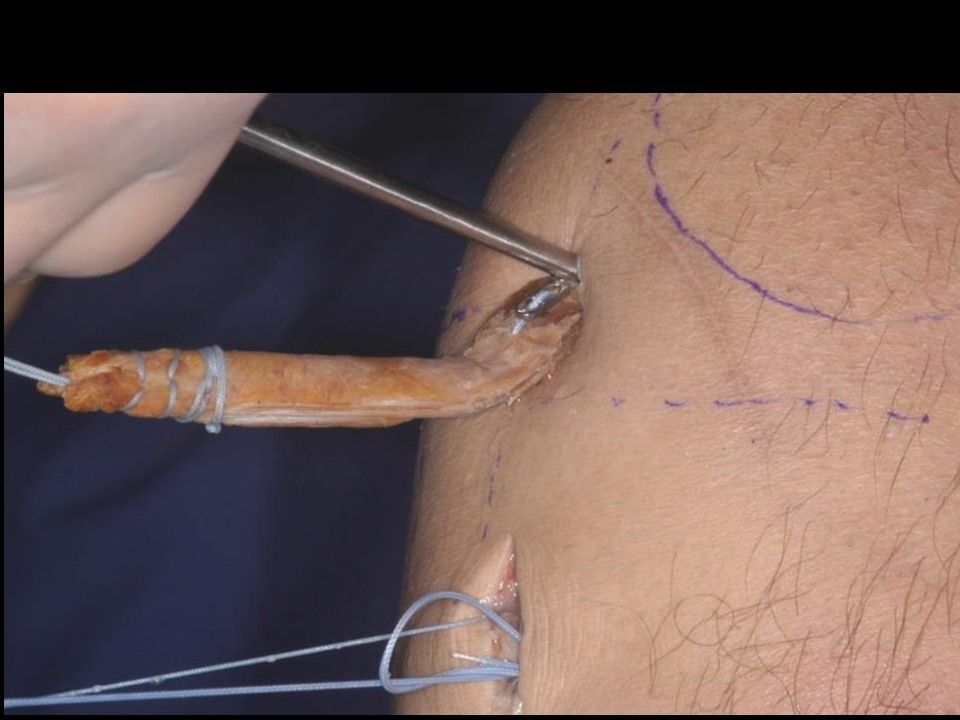

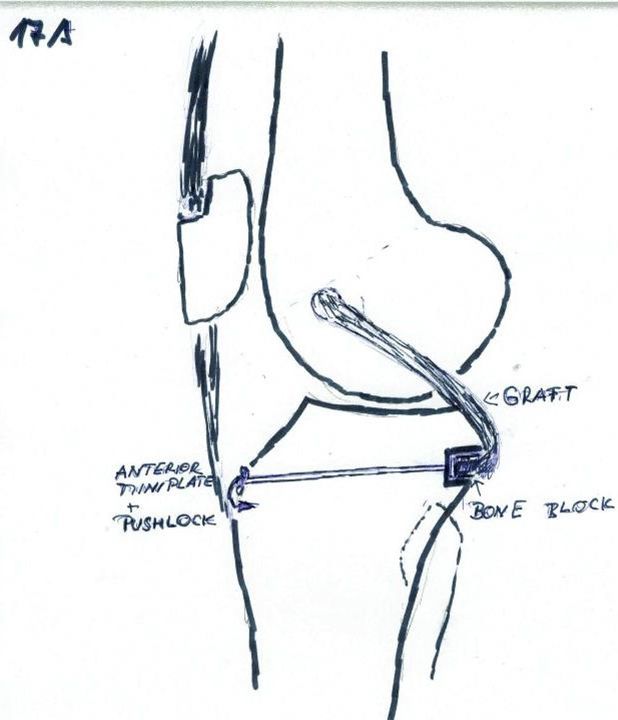

The graft with the bone block first is inserted over the anteromedial portal and pulled into the tibial socket until it rests fix (Fig 22 & 23).

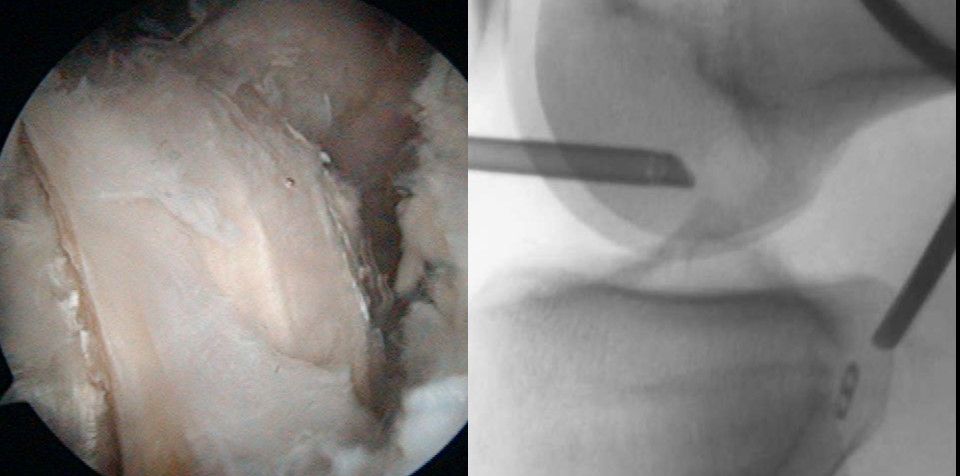

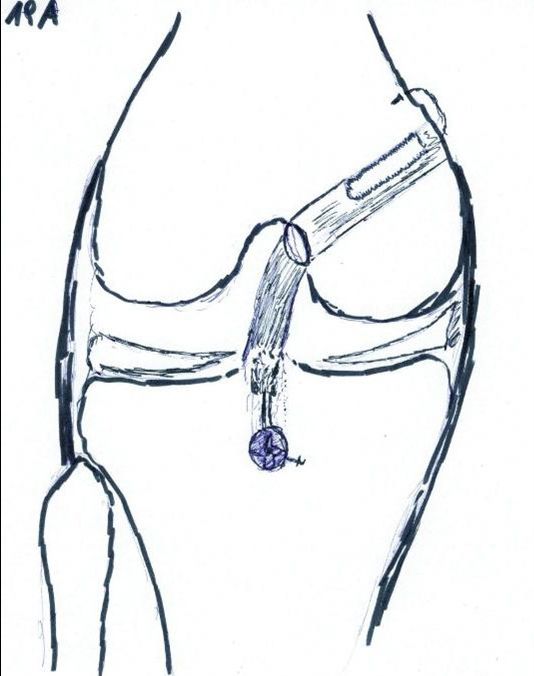

This can be controlled easily under fluoroscopy as the bone block is marked with the 2-hole plate (Fig 24 to 26). The sutures of the bone block are pulled out anteriorly on the tibia and fixed again over a button and in hybrid fixation technique fixed with push lock anchors.

Now the tendon part of the graft is inserted by the help of the tiger stick.

During anterior drawer in 90° of flexion the graft inside the femoral tunnel is fixed by an interference screw and again back-up fixation with push lock anchors are performed.

Intraoperative stability testing is carried out by anterior - posterior drawer test as well as by testing peripheral secondary ligaments. This clinical testing may be carried out using fluoroscopy to define the neutral position of the knee.

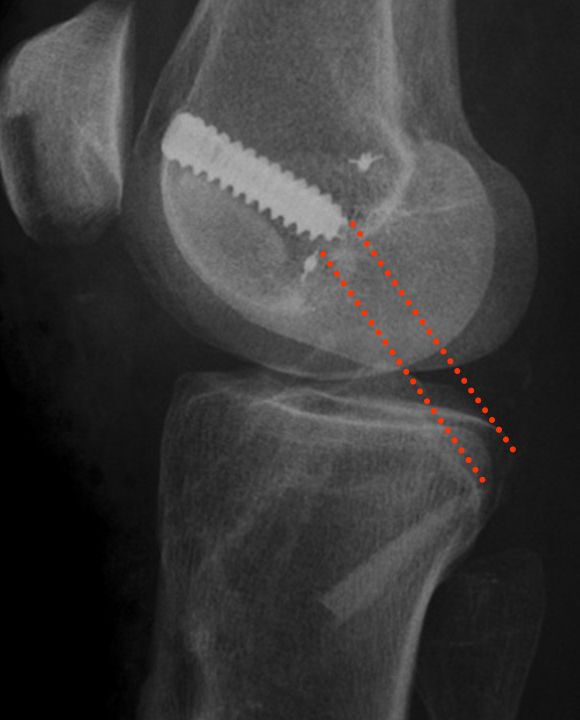

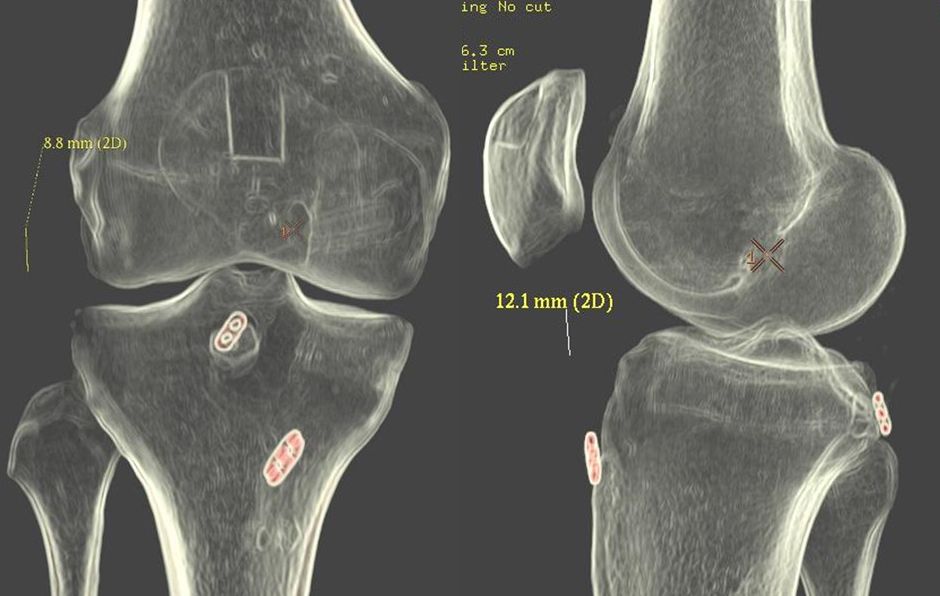

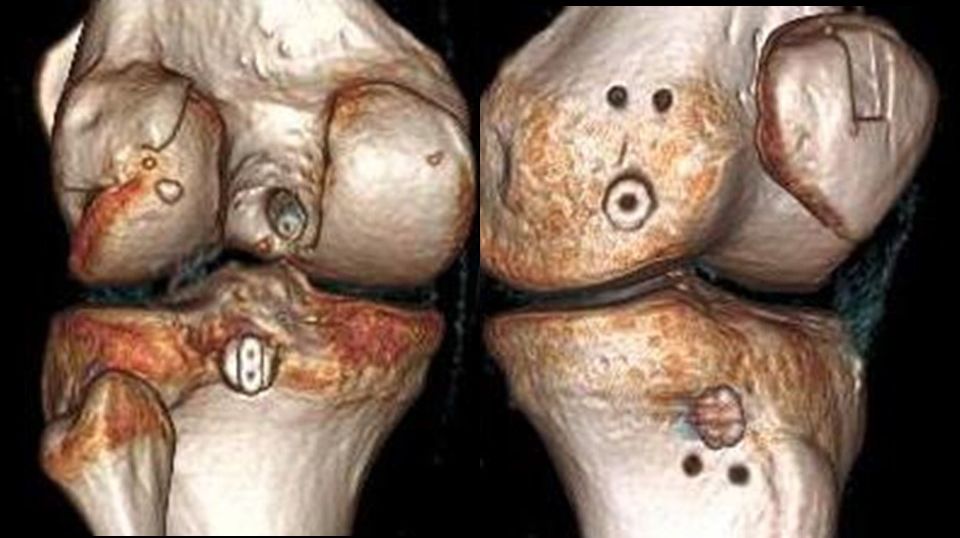

Postoperative X-rays control and CT imaging control is carried out for quality documentation. (Fig 27 + 28).

Postoperative rehab programm

Postoperative the knee is held in extension using a fix brace with posterior calf support for 2 weeks which then is changed to a PCL brace for 10 more weeks with slowly increasing flexion angle. Weight bearing is partially for the first 3 – 4 weeks and then gradually increased as tolerated. Flexion exercises are carried out for the first 8 weeks only in supine position.

Therapy is significantly slower compared to the rehabilitation program after ACL reconstruction which is mainly influenced by the gravity of the tibia during flexion and the concomitant stress on the graft during flexion.

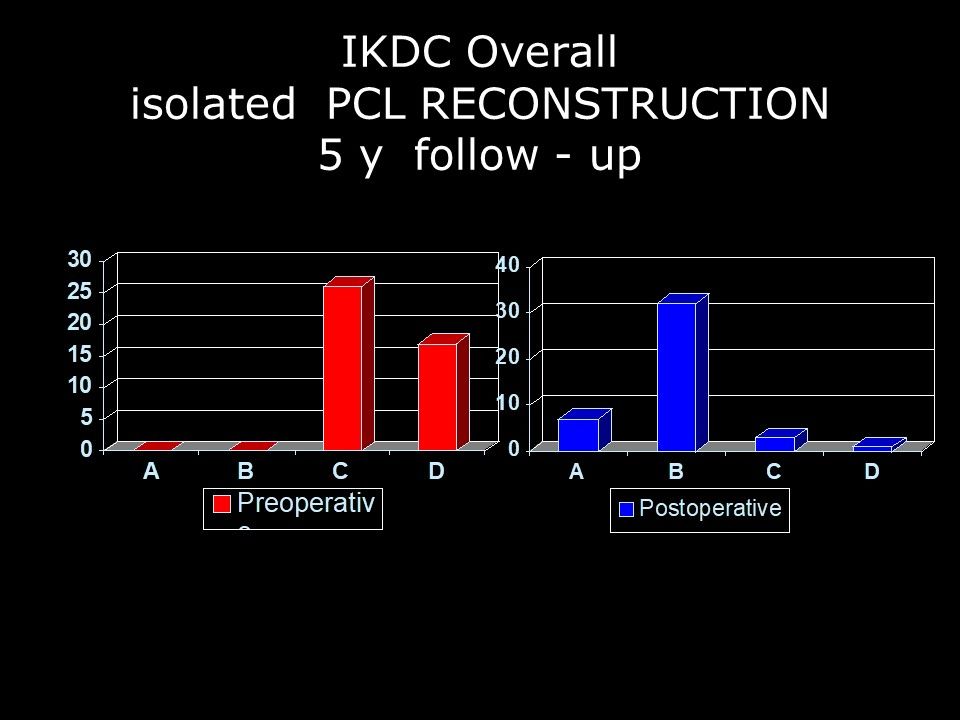

Our own data of arthroscopic PCL Inlay reconstruction technique using quadriceps tendon autograft with bone block show similar results to transtibial tunnel technique in the minimum 5-year follow up (Fig 29).
